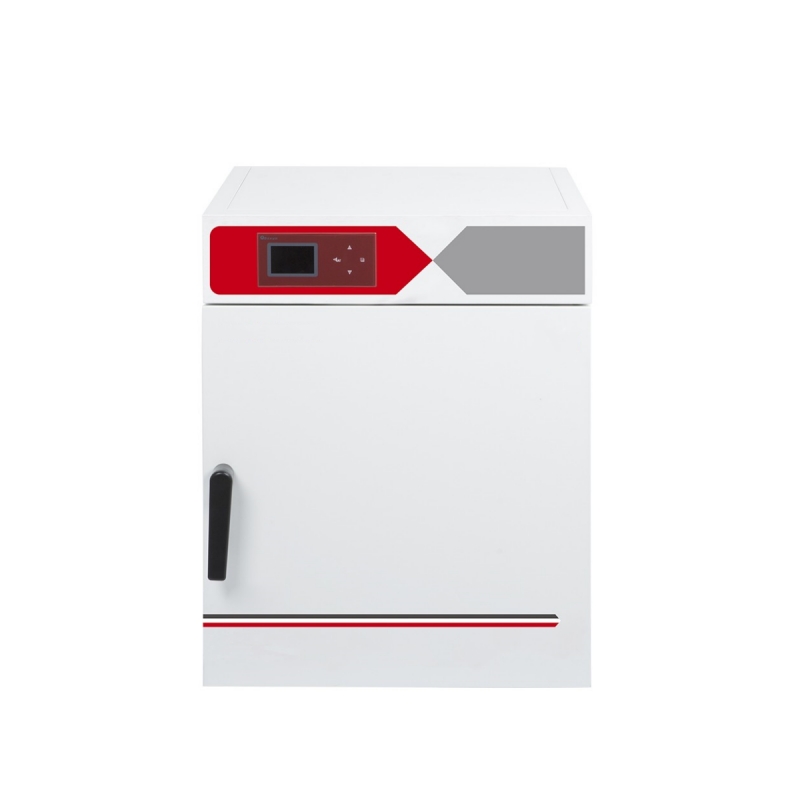

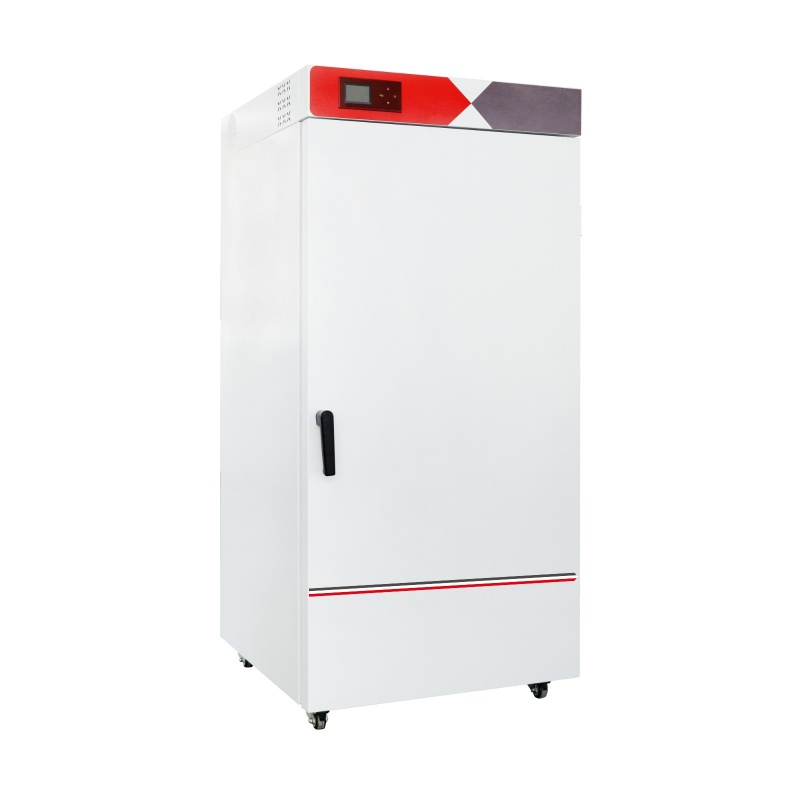

BXH-G series Hot Air Sterilizer
  • Product Category: Products Autoclave / Sterilizer
  • product description:The Hot Air Sterilizer is applicable for drying, baking, melting and sterilization in dustrial and mining enterprises, laboratories and scientific research institutes.
  • Products Description


    The Hot Air Sterilizer is applicable for drying, baking, melting and sterilization in dustrial and mining enterprises, laboratories and scientific research institutes.This Hot Air Sterilizer is used for routine experimental sample drying and baking; Loss of weight during oven drying; Used in the pharmaceutical industry to remove heat sources through high-temperature methods.


    Products Features


    1

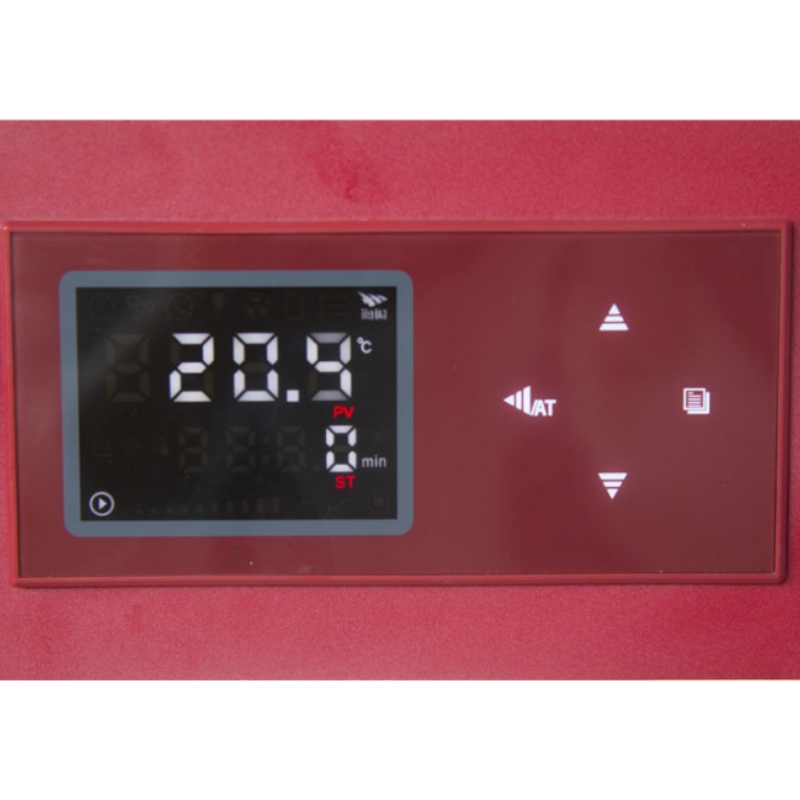

    LCD display, real-time display of set temperature and actual temperature value, operation status, fan segment number and working status

    2

    Backlit touch button, easy to operate, low failure rate

    3

    BRIGHT I control system can automatically compensate the value of control parameters according to the change of environment

    4

    With countdown reservation function, the time range is 0 to 9999min

    5

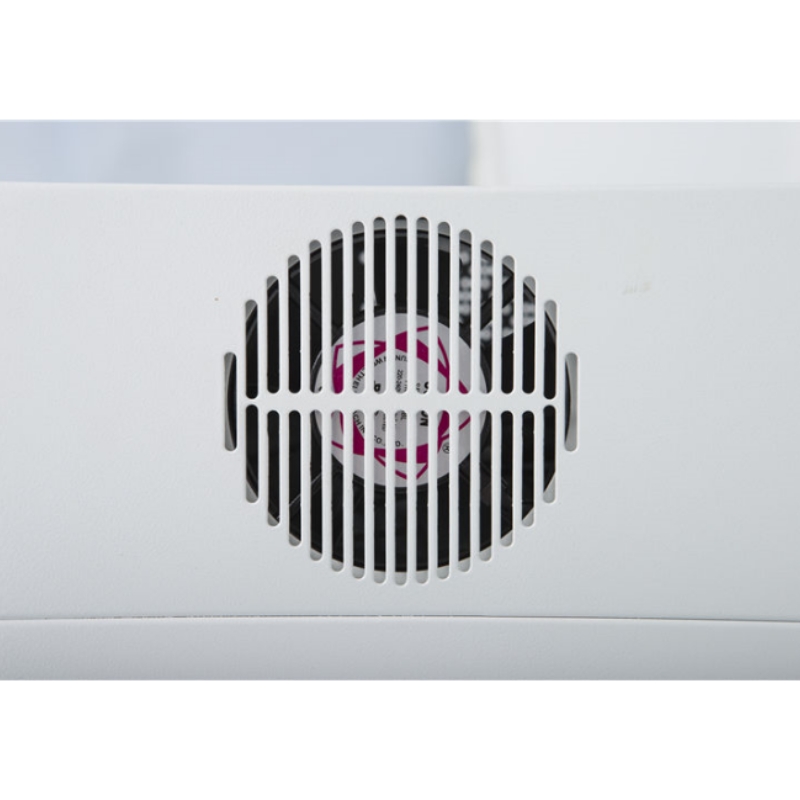

    The fan has 6-stage speed regulation, which can meet the requirements of different wind speeds and avoid sample loss caused by dust

    6

    Double over temperature alarm function (A. temperature sensor system, B. independent temperature control switch), to ensure the equipment safe operation

    7

    Enhanced shelf design, convenient to take and place samples, support arbitrary positioning, high load capacity

    8

    Preheating chamber design, the air directly into the chamber after heating and mixing, to ensure rapid heating and good heat distribution effect

    9

    Designed with four rounded corners of the chamber, and the shelves are easy to disassemble and clean

    10

    Equipped with the inlet and outlet air filters

    11

    Equipped with a RS-485 interface


    Products Technical Parameters


    Model BXH-65G BXH-130G BXH-210G BXH-280G BXH-450G
    Volume [L] 64 129 210 284 452
    Power Supply [V, Hz] 220±10, 50/60
    Temp. Range [°C] RT+5~300
    Temp. Resolution [°C] 0.1
    Temp. Fluctuation [°C] ±0.3 ±0.5
    Temp. Uniformity at 105°C [°C] ±1
    Temp. Uniformity at 170°C [°C] ±3
    Temp. Uniformity at 250°C [°C] ±5
    Heating Rate to 150°C [°C/min] >6
    Timer Range [min or h] 0~9999
    Reservation Range [min] 0~9999
    Power [W] 1550 2150 2750 3500

    Internal Dimensions

    W×D×H [mm]

    410×350×450 570×400×570 630×530×630 720×530×745 600×580×1300

    Housing Dimensions

    W×D×H [mm]

    555×566×722 715×616×842 775×746×902 865×746×1019 774×845×1704
