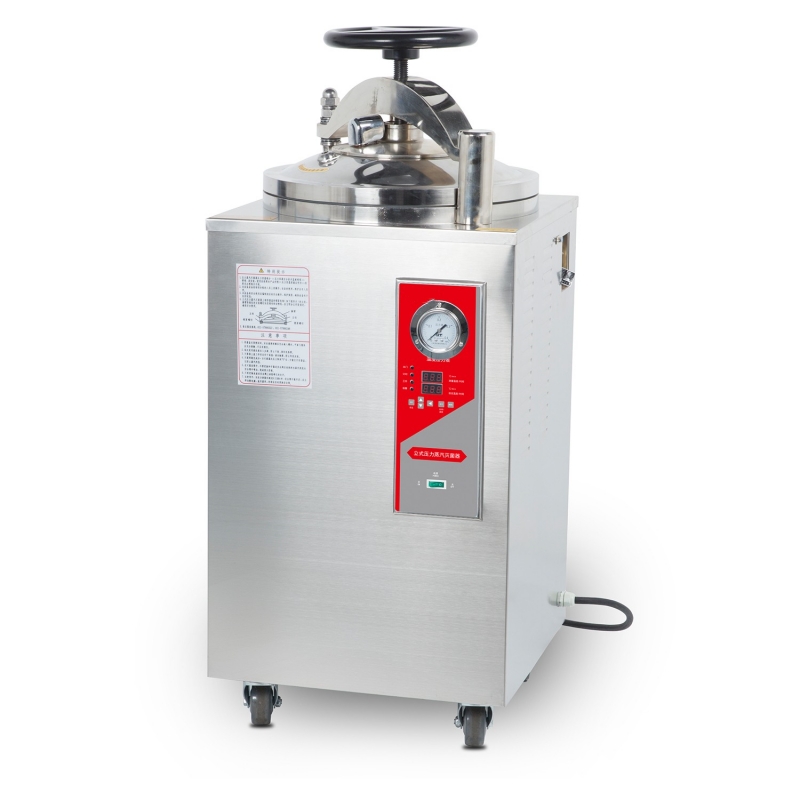

The High pressure steam sterilizer is widely used in various fields such as medical, laboratory, pharmaceutical, and food industries for sterilization and disinfection of various materials, such as solids, liquids, and culture media. It is also used for the sterilization of surgical instruments, glassware, and other laboratory equipment. The High pressure steam sterilizer is equipped with advanced features such as digital temperature and pressure control, automatic timing, and safety interlocking devices, making it efficient and safe for use.
Made of SUS304
Handwheel type quick-open cover
Microcomputer intelligent control
Self expanding type seal ring
Exhaust cold air automatically
Self-control when lack of water
Self-exhaust when over pressure
Pressure safety interlock
Over temperature protection
Buzzer reminds when sterilization ends
Equipped with G1/2A internal thread sample test hole
|
Model |
YXQ-LB-30SII | YXQ-LB-50SII | YXQ-LB-75SII | YXQ-LB-100SII |
| Volume [L] | 29 | 50 | 75 | 100 |
| Power [kW] | 2.3 | 3.2 | 3.5 | |
| Power Supply [V, Hz] | 220±10%, 50±2% | |||
| Max. Working / Design Temp. [°C] | 135 / 139 | |||
| Max. Working / Design Pressure [MPa] | 0.22 / 0.25 | |||
| Timer Range [min] | 4~120 | |||
| Internal Dimensions [mm] | Ø300×485 | Ø400×630 | Ø400×720 | Ø400×830 |
|
Housing Dimensions W×D×H [mm] |
445×445×900 | 485×485×1120 | 485×485×1190 | 485×485×1290 |

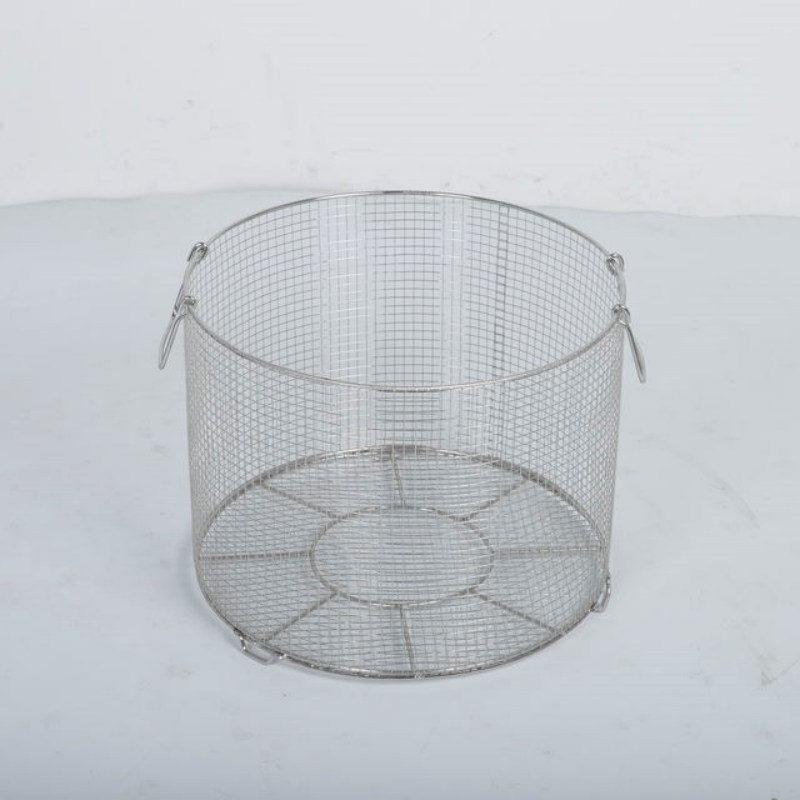

| Basket Dimensions [mm] | Ø280×340 | Ø360×230 | Ø360×270 | Ø360×230 |
| Number of Baskets [pc] | 1 | 2 | 3 | |
