The YXQ-G series vertical pressure steam sterilizer is an ideal equipment for quickly and reliably disinfecting and sterilizing products using pressure saturated steam. It is suitable for pharmaceutical, scientific research, agriculture and other units to disinfect and sterilize dressings, glassware, solution culture media, etc.
Drying function
Made of SUS304
Handwheel type quick-open cover
Microcomputer intelligent control
Self expanding type seal ring
Exhaust cold air automatically
Inner circulation exhaust
Self-control when lack of water

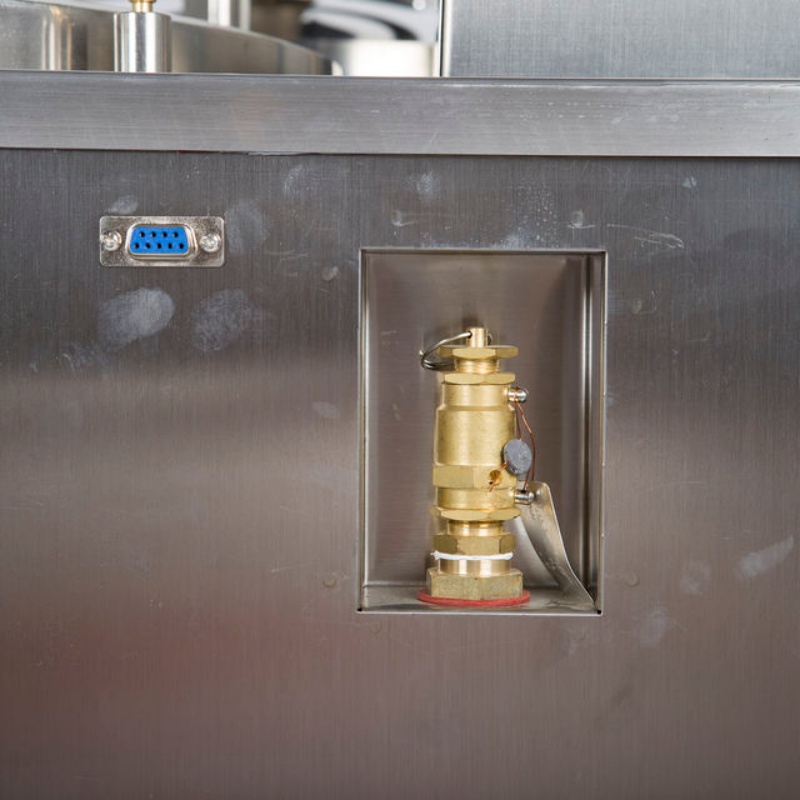

Self-exhaust when over pressure
Pressure safety interlock
Over temperature protection
Buzzer reminds when sterilization ends
Work process of sterilization and drying:
a. sterilization - natural cooling
b. sterilization- automatic exhaust
c. sterilization-exhaust-drain-drying
|
Model |
YXQ-50G | YXQ-70G | YXQ-100G |
| Volume [L] | 50 | 75 | 100 |
| Power [kW] | 3.2 | 3.5 | |
| Drying Power [kW] | 0.8 | 1 | |
| Power Supply [V, Hz] | 220±10%, 50±2% | ||
| Max. Working / Design Temp. [°C] | 135 / 139 | ||
| Max. Working / Design Pressure [MPa] | 0.22 / 0.25 | ||
| Timer Range [min] | 4~120 | ||
| Drying Timer Range [min] | 30~240 | ||
| Internal Dimensions [mm] | Ø400×640 | Ø400×720 | Ø400×850 |
| Housing Dimensions W×D×H [mm] | 485×605×1120 | 485×605×1190 | 485×605×1290 |

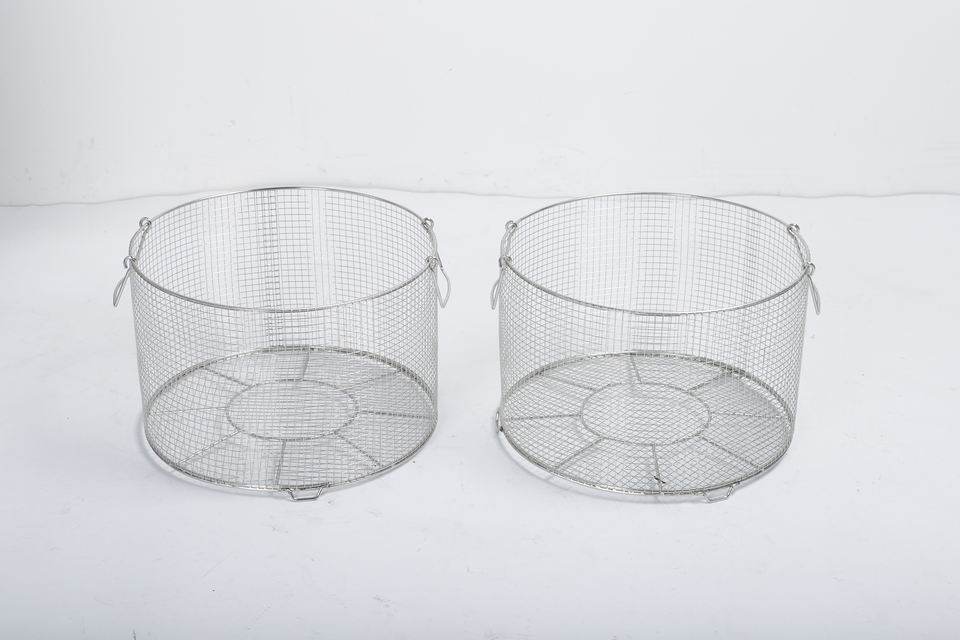

| Basket Dimensions [mm] | Ø360×230 | Ø360×270 | Ø360×230 |
| Number of Baskets [pc] | 2 | 3 | |
