The shell is made of cold-rolled steel plate, the surface is electrostatic spray plastic, the inner liner is made of stainless steel material, and the semi-circular four-corner design is more convenient to clean;

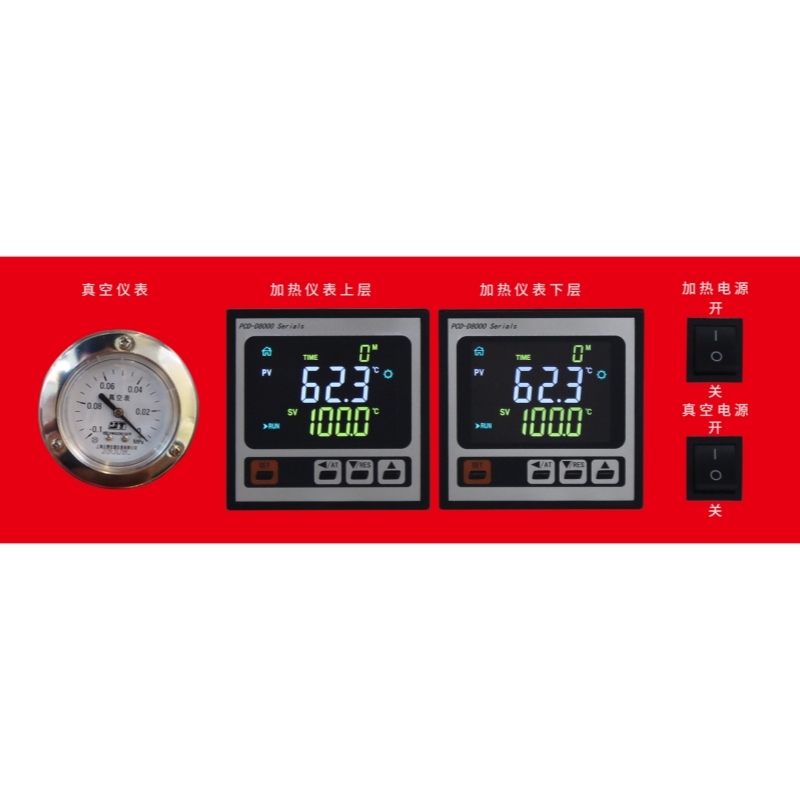

Temperature control system adopts microcomputer technology, LCD screen displays various parameters, temperature control instrument has temperature control, timing, overtemperature alarm and other functions;

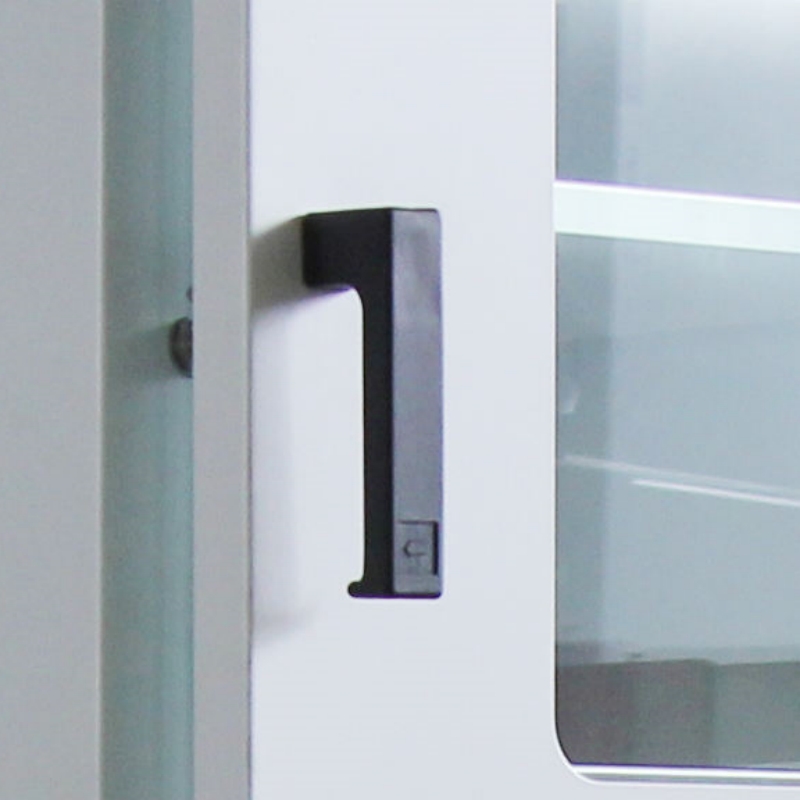

The tightness of the door can be adjusted by the user at will. The silicone rubber door seal formed as a whole ensures high vacuum in the box；

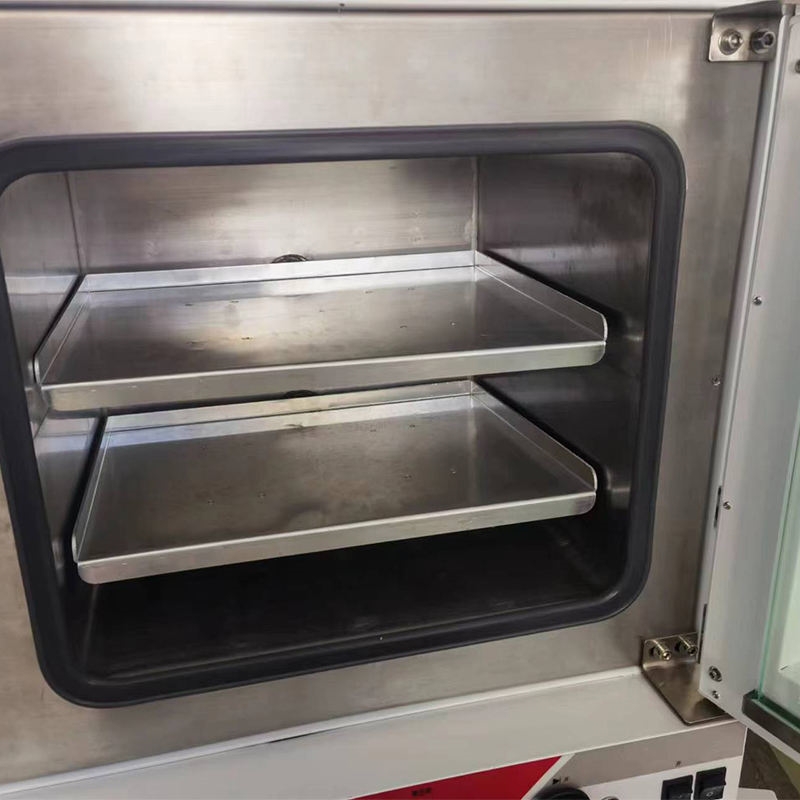

The studio is rectangular in structure, the door adopts toughened, bulletproof double glass door, so that the observation of the studio cultivation items can be clearly seen by the user;

Due to power failure, crash caused by the loss of status data and saved parameter memory, call recovery function；

Refer to standard GB/T 29251-2012

Note: Partition cannot be extracted.

Optional: oil filter, intelligent touch screen controller

Partition heating:The heating unit is evenly distributed under the carrier partition, and the heating efficiency is increased by more than 50%，Compared with the shell heating, the heat loss is also greatly reduced,In the case of high vacuum, the heat transfer efficiency is improved, the heat of the partition is more uniform, and the drying efficiency and drying uniformity of the sample are also greatly improved.

Independent temperature control:The temperature of the multilayer heating partition is controlled independently, and the temperature of each layer is directly displayed, which improves the synchronization of the multi-layer sample drying,In the case of small sample quantity, part of the heating layer can be opened separately, which has better energy-saving application;

Soundproof cabinet:Integrated design, the standard vacuum pump is placed in the noise reduction cabinet, which not only saves the use of space, but also improves the cleanliness of the laboratory compared with the external vacuum pump. The noise reduction design of the cabinet reduces the noise by 40%.

Vacuum display:The meter directly displays and controls the vacuum degree. When the vacuum degree leaks or decreases due to sample evaporation and expansion, the vacuum degree can be automatically compensated.
