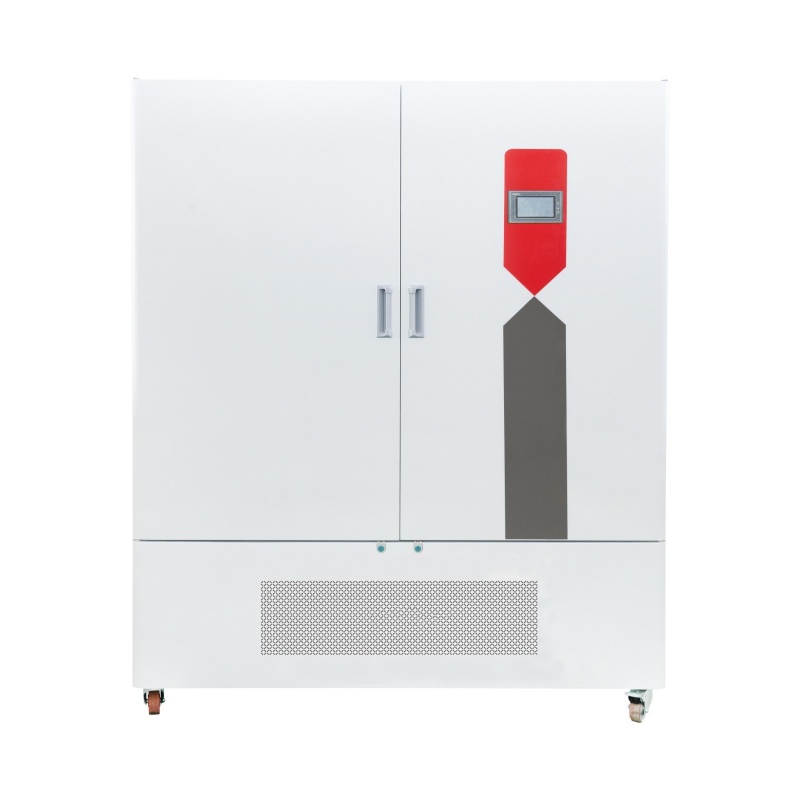

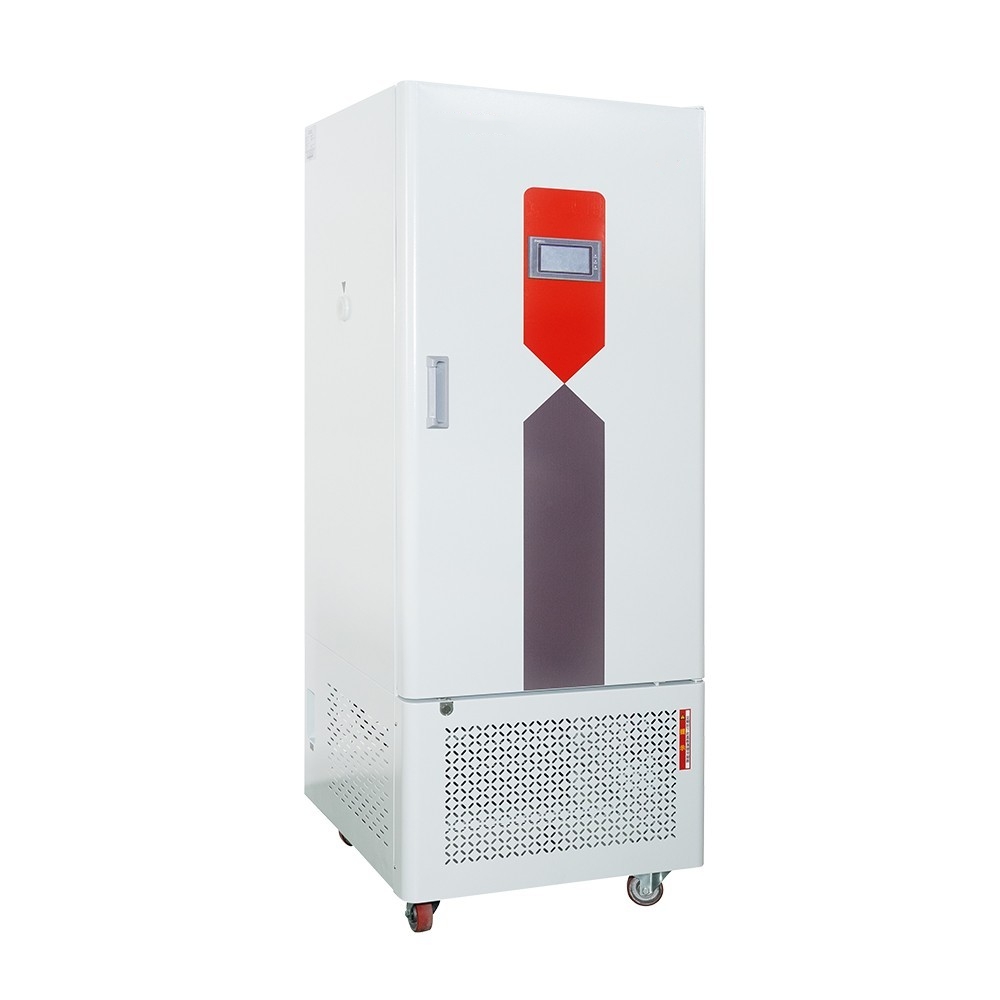

BXL series Illumination Incubator
  • Product Category: Products Plant Growth Incubator
  • product description:The BXL series Illumination Incubator mainly provides a stable temperature, humidity, and lighting environment for the test samples, accurately simulating the temperature, humidity, and lighting conditions of day, night, and seasonality, and providing users with various climatic growth conditions for plants. Suitable for seed germination, seedling cultivation, plant growth and tissue culture, plant cultivation and breeding, model organism cultivation, etc.
 [←]  BXG-I series Plant Growth Incubator
 [→]  BSG series Illumination Incubator
  • Products Description


    The BXL series Illumination Incubator mainly provides a stable temperature, humidity, and lighting environment for the test samples, accurately simulating the temperature, humidity, and lighting conditions of day, night, and seasonality, and providing users with various climatic growth conditions for plants. Suitable for seed germination, seedling cultivation, plant growth and tissue culture, plant cultivation and breeding, model organism cultivation, etc.


    Products Features


    1

    BRIGHT I control system, automatically compensate parameters based on the environment

    2

    4.3 inch LCD touch screen

    3

    Support for viewing alarm records, data, and curves

    4

    Supports storage of 100000 records and USB data export, multi-level password management

    5

    Variable frequency cooling, adjustable height partition type light source

    6

    Full spectrum LED light, each layer of lighting panel can be individually adjusted

    7

    The internal cavity adopts a full arc angle design, which is clean and smooth without dead corners, making maintenance and cleaning very convenient

    8

    The door seal adopts an advanced magnetic seal structure, which has good sealing effect and saves labor when opening and closing doors compared to mechanical buckle sealing structure

    9

    Support simultaneous adjustment of the position of the lighting source and the load shelf to meet the needs of multiple layers with different growth heights

    10

    The light source adopts a full spectrum high intensity plant LED lamp, composed of far red, red, blue, and white four color lamp beads

    11

    The light intensity of each layer can be individually adjusted to meet the light needs of different plant growth


    Products Technical Parameters


    Model BXL-250 BXL-400 BXL-800 BXL-1000
    Volume [L] 250 400 800 1000
    Temp. Range [°C] 0~70
    Temp. Resolution [°C] 0.1
    Temp. Fluctuation at 25°C [°C] ±0.5
    Temp. Uniformity at 25°C [°C] ±1 ±1.5
    Illuminance [Lux] 0-40000
    Power [W] 1450 1750 3100 3300
    Growth Height [cm] 45
    Total Growth Area [m²] 0.46 0.77 1.43 1.83
    Internal Dimensions W×D×H [mm] 510×450×1090 600×640×1050 1220×585×1123 1363×670×1123
    Housing Dimensions W×D×H [mm] 650×740×1726 745×930×1695 1503×910×1820 1505×1006×1811
    Number of Shelves (std./max.) [pcs] 2 / 4

    Number of Layer Illumination

    Shelves (std./max.) [pcs]

    		2 / 4
