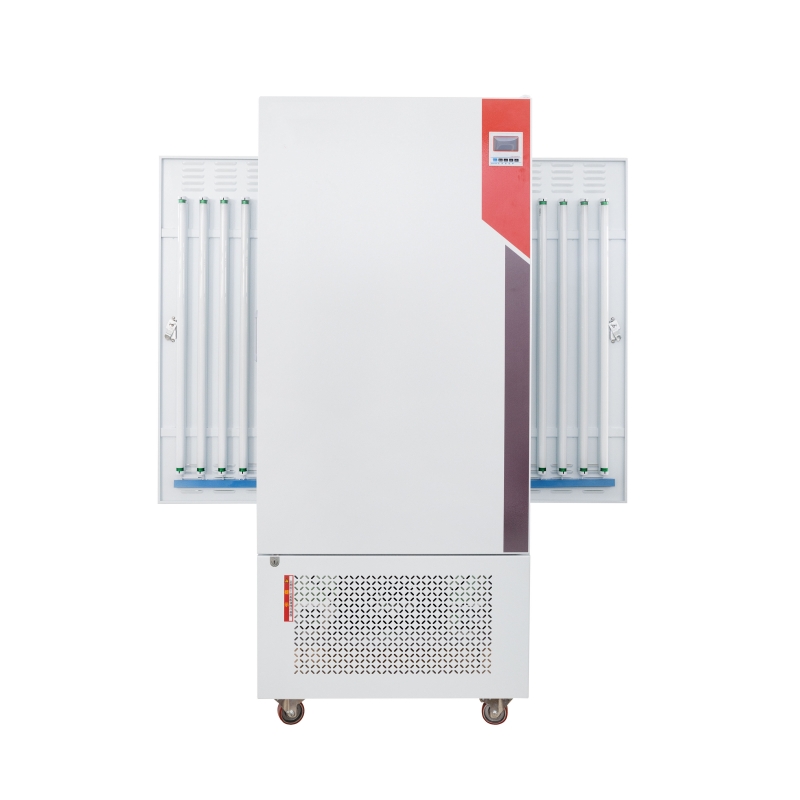

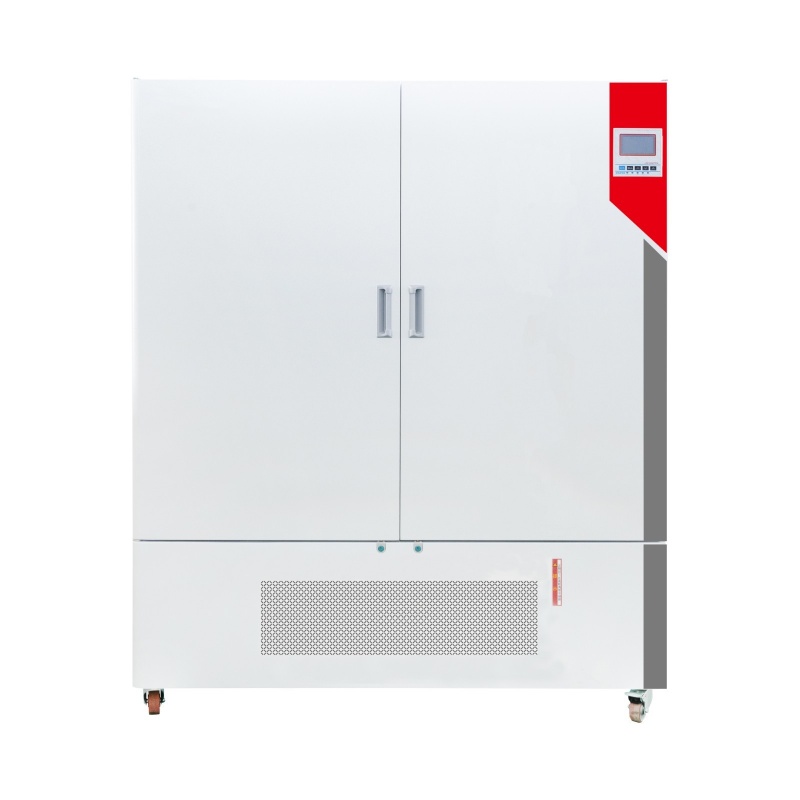

The BSG series Illumination Incubator mainly provides a stable temperature, humidity, and lighting environment for the test samples, accurately simulating the temperature, humidity, and lighting conditions of day, night, and seasonality, and providing users with various climatic growth conditions for plants. Suitable for seed germination, seedling cultivation, plant growth and tissue culture, plant cultivation and breeding, model organism cultivation, etc.

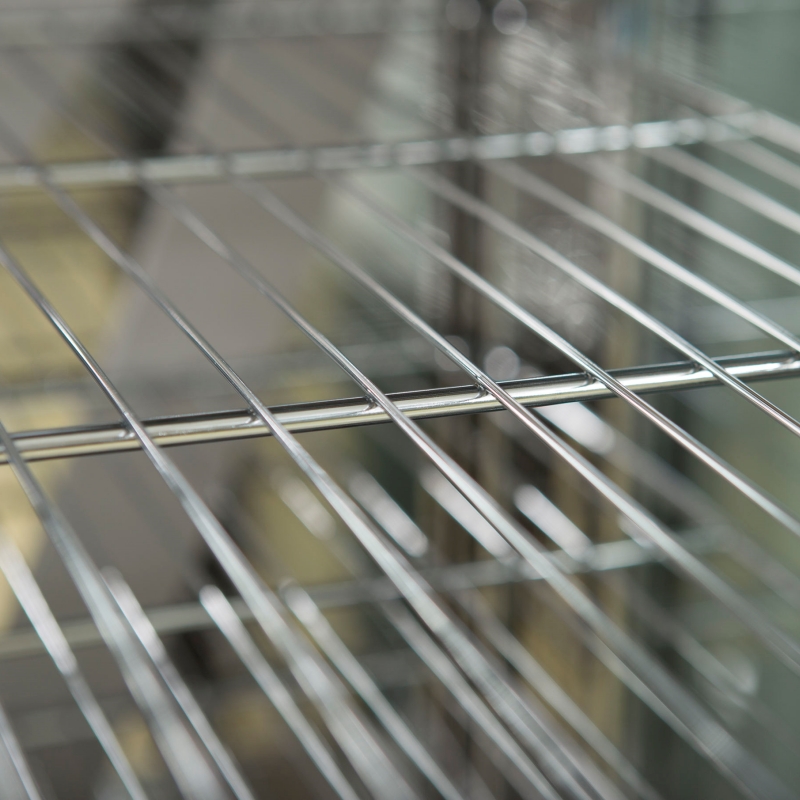

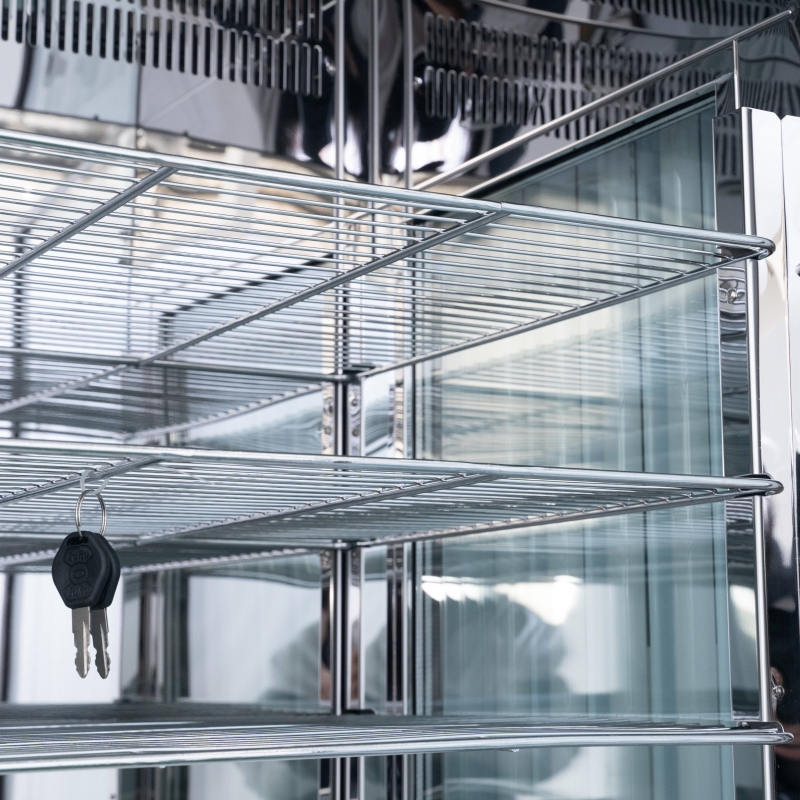

The outer shell is made of cold-rolled steel plate, with a surface electrostatically sprayed plastic. The inner liner has a mirror stainless steel surface, and the shelf can be adjusted at will
PMMA II operating system with LCD display screen and over temperature alarm function
Amplitude flow air supply and enhanced convective circulation form ensure the flow and temperature uniformity of air at each layer
Equipped with a glass observation inner door, and a detection port joint at the top of the box, with an inner diameter of 30mm and an outer diameter of 60mm
Famous brand compressors and circulating air ducts, as well as fluorine free refrigerants, lead the way in environmental protection, efficiency, and energy conservation
Integrated refrigeration system with multiple layers of protection, safe operation and effective self calibration, using non consumable and unconventional automatic frost to avoid temperature impact and ensure continuous long-term use of the equipment
Using an independent fresh air device, the air inside the regulating box can be turned on and off at any time to maintain fresh air inside the box
Programmable programming, capable of setting 30 segments and 99 cycles
The illuminance is adjustable at six levels and adopts a three-dimensional lighting layout to improve uniformity
The parameter memory and call recovery function are protected due to data loss caused by power outages and crashes
|
Model |
BSG-250 |
BSG-300 |
BSG-400 |
BSG-800 |
|
Volume [L] |
250 |
300 |
400 |
800 |
|
Temp. Range without Lighting [°C] |
0~60 |
|||
|
Temp. Range with lighting [°C] |
10~60 |
|||
|
Temp. Resolution [°C] |
0.1 |
|||
|
Temp. Fluctuation at 37°C [°C] |
±0.5 |
|||
|
Temp. Uniformity at 37°C [°C] |
±1 |
±1.5 |
||
|
Illuminance [Lux] |
0~15000 |
|||
|
Power [W] |
1300 |
1500 |
3300 |
|
|
Timer Range [min] |
0~9999 |
|||
|
Internal Dimensions W×D×H [mm] |
480×480×1100 |
540×520×1100 |
554×610×1148 |
1220×585×1123 |
|
Housing Dimensions W×D×H [mm] |
710×775×1770 |
770×815×1770 |
783×905×1818 |
1633×910×1820 |
|
Number of Shelves (std./max.) [pc] |
4 / 7 |
6 / 12 |
||
