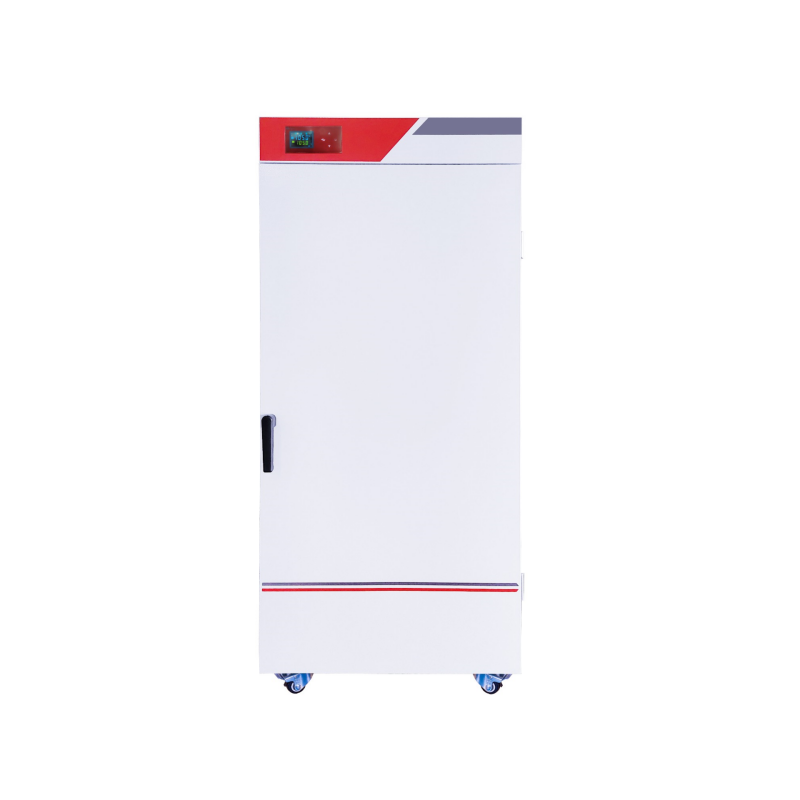

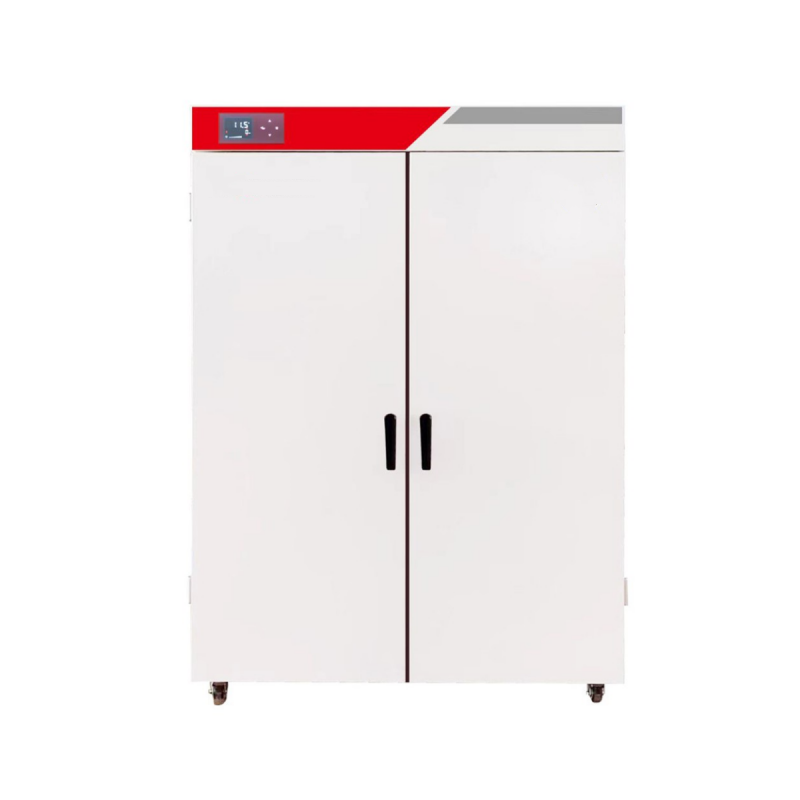

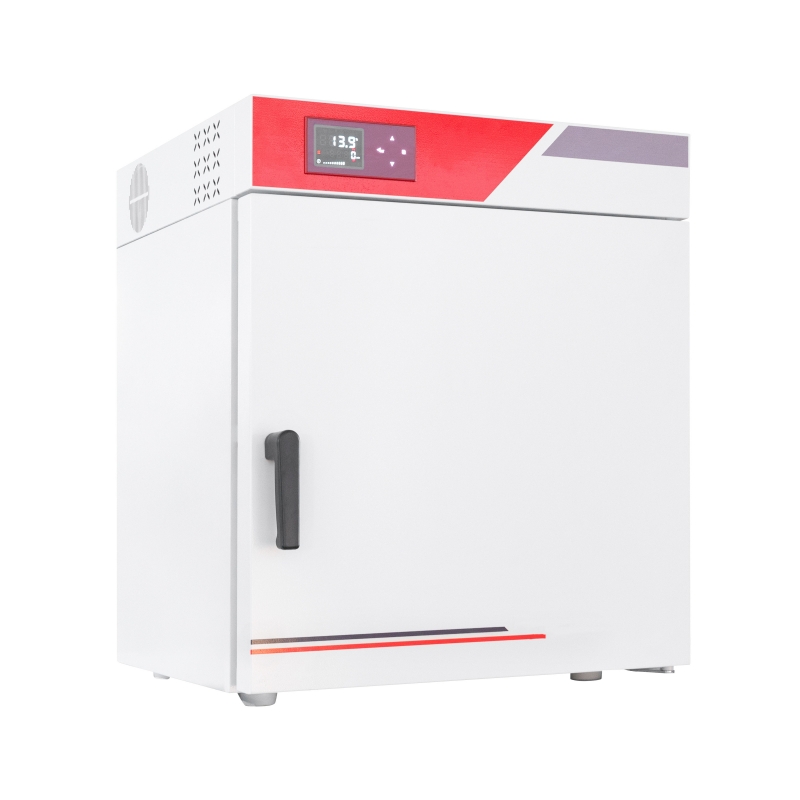

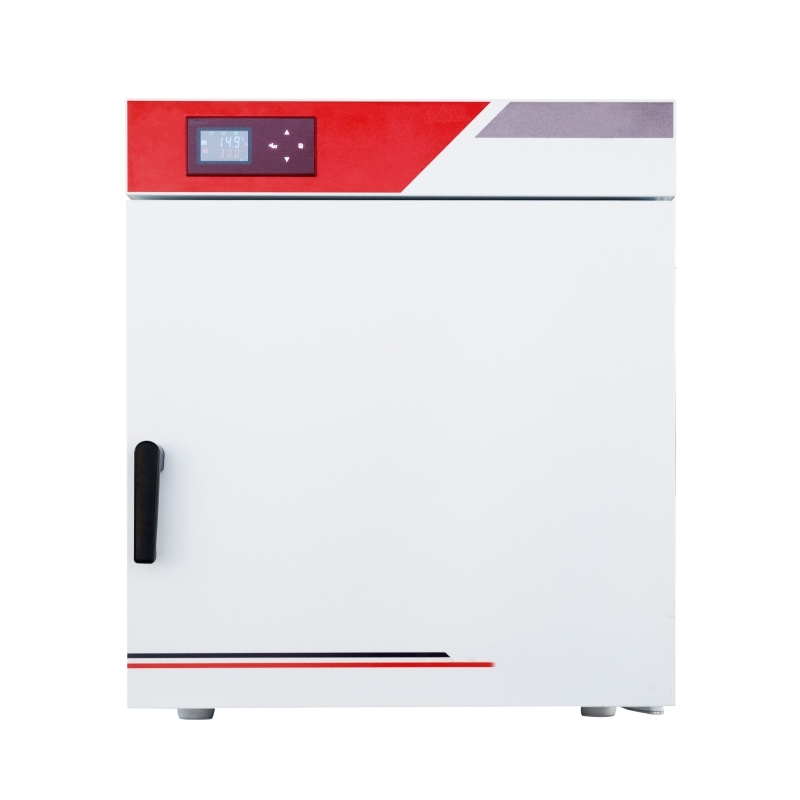

The BGZ series (300 ℃) Drying Oven utilizes thermal radiation and air circulation convection inside the oven to achieve drying, baking, wax melting, sterilization, solidification, aging, heat removal, and plant tissue withering of items. Applied in fields such as biopharmaceuticals, food, inspection and testing, inspection and quarantine, agriculture, forestry, animal husbandry, and fishery, environmental protection, scientific research, electrical engineering, instrumentation, electronic components, polymer materials, plastics, aviation, machinery, and chemical engineering.

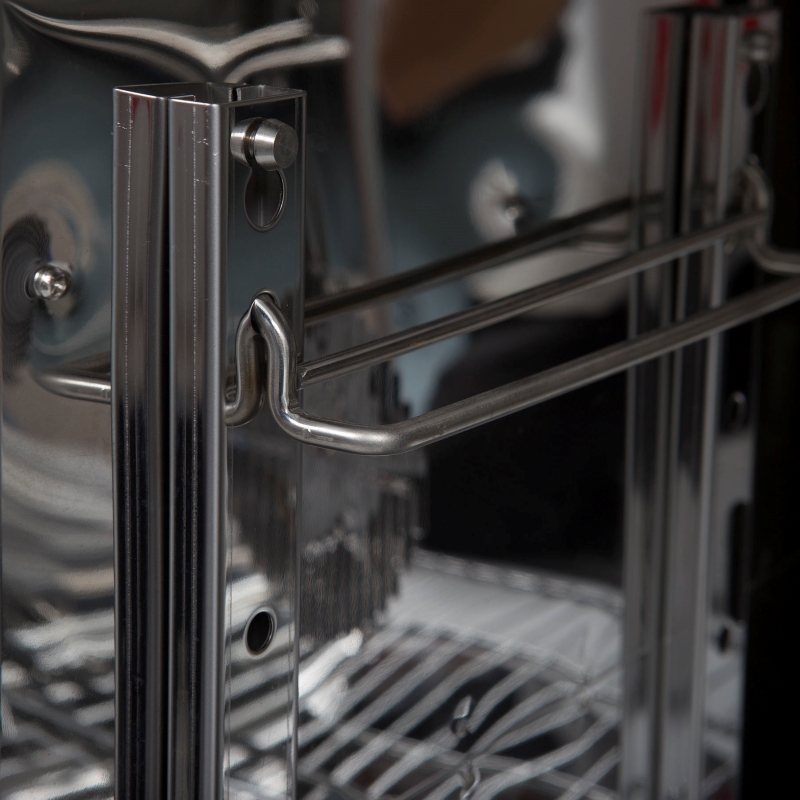

The shell is made of cold-rolling steel with static spray plastics, the working chamber is made of mirror stainless steel, the shelves can be adjusted at will;
The rotary two-stage locking structure has good sealing performance;
Four rounded corners of the chamber, the shelves are easy to disassemble and clean;

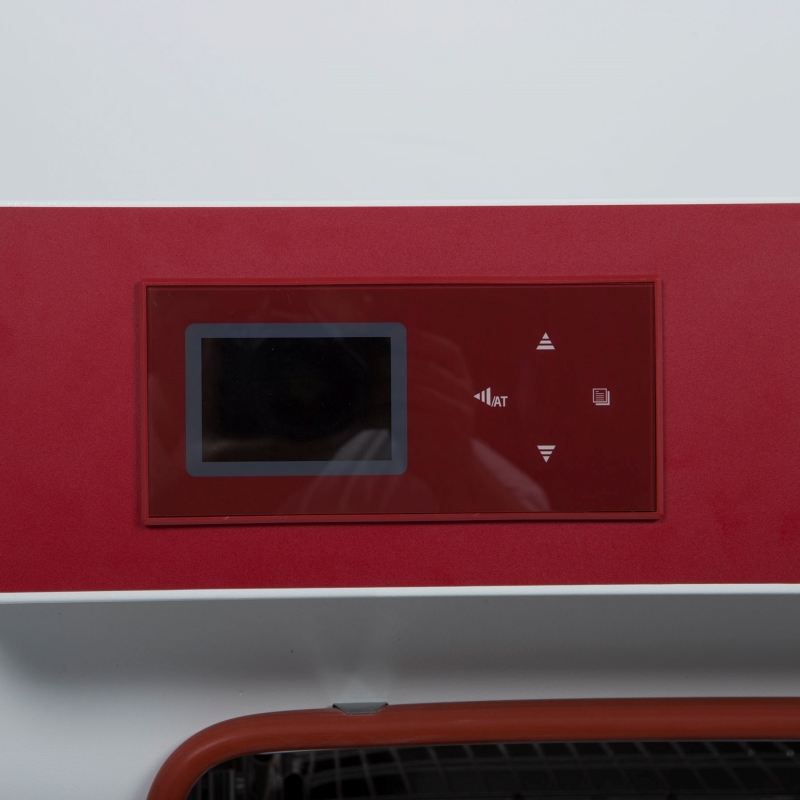

PMMA II operating system, touch keys, color LCD display of various parameters, with temperature control, timing, programming, wind speed control, over temperature alarm and other functions;
With countdown reservation function;
Programmable design, it can be set 10 segments 100 cycles;
Preheating chamber design, the air directly into the chamber after heating and mixing, to ensure rapid heating and good heat distribution effect;

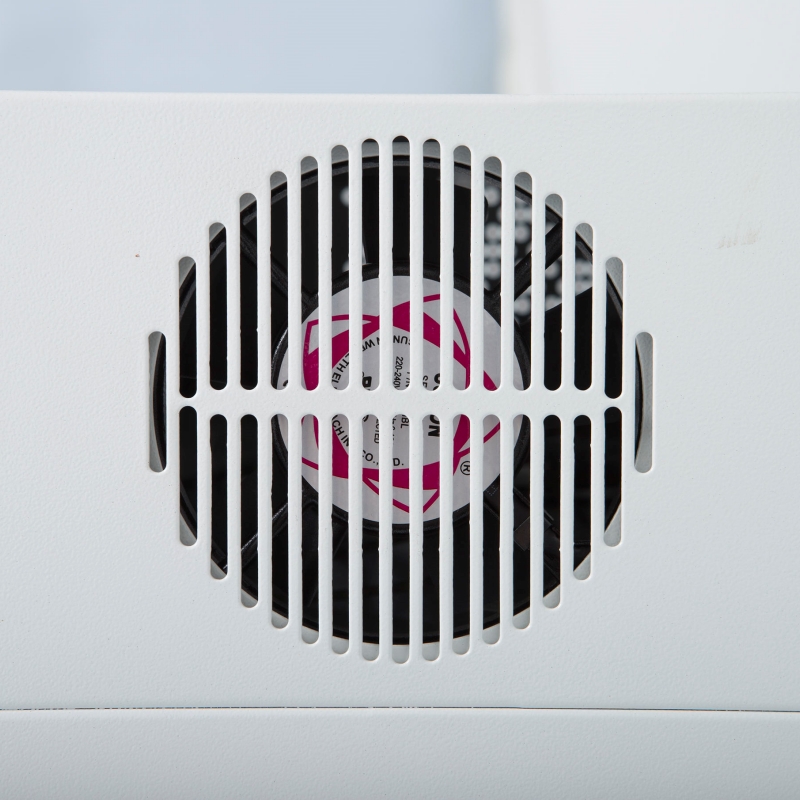

Shaded pole motor and wind blade, with air convection breeze device, the air in the chamber can be renewed and circulated;
The fan has 6-stage speed regulation, which can meet the requirements of different wind speeds and avoid sample loss caused by dust;
Power supply recovery function, data will not be lost when power failure and system halted.
|
Model |
BGZ-76 |
BGZ-146 |
BGZ-246 |
BGZ-306 |
BGZ-456 | BGZ-656 | BGZ-1006 |
|
Volume [L] |
64 |
129 |
210 |
284 |
452 |
655 | 1001 |
|
Temp. Range [°C] |
RT+5~300 |
RT+5~300 |
RT+5~300 |
RT+5~300 |
RT+5~300 |
RT+5~300 | RT+5~300 |
|
Temp. Resolution [°C] |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 | 0.1 |
|
Temp. Fluctuation at 105°C [°C] |
±0.8 |
±0.8 |
±0.8 |
±0.8 |
±0.8 |
±0.8 | ±0.8 |
|
Temp. Uniformity [%] |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 | ±2 |
|
Heating Rate to 180°C [°C/min] |
˃5 |
˃5 |
˃5 |
˃5 |
˃5 |
˃5 | ˃5 |
|
Power [W] |
1550 |
2150 |
2750 |
2750 |
3500 |
4500 | 6600 |
|
Power Supply [V, Hz] |
220±10%, 50±2% |
220±10%, 50±2% |
220±10%, 50±2% |
220±10%, 50±2% |
220±10%, 50±2% |
220±10%, 50±2% | 220±10%, 50±2% |
|
Timer Range [min] |
0~9999 |
0~9999 |
0~9999 |
0~9999 |
0~9999 |
0~9999 | 0~9999 |
|
Reservation Range [min] |
0~9999 |
0~9999 |
0~9999 |
0~9999 |
0~9999 |
0~9999 | 0~9999 |
|
Internal Dimensions W×D×H [mm] |
410×350×450 |
570×400×570 |
630×530×630 |
720×530×745 |
600×580×1300 |
720×650×1400 | 1100×650×1400 |
|
Housing Dimensions W×D×H [mm] |
555×566×722 |
715×616×842 |
775×764×902 |
865×764×1017 |
774×845×1704 |
865×8660×1730 | 1220×850×1730 |
|
Number of Shelves (std./max.) [pc] |
2 / 5 |
2 / 7 |
3 / 8 |
3 / 10 |
3 / 18 |
4 / 18 | 4 / 18 |
|
Load per Shelf [kg] |
15 |
15 |
15 |
15 |
15 |
15 | 15 |
