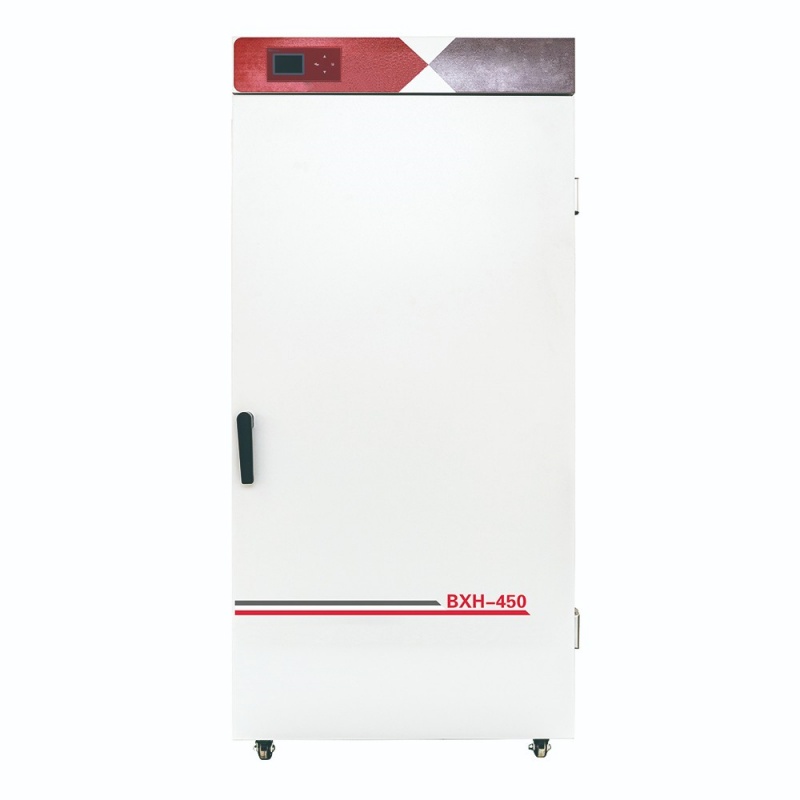

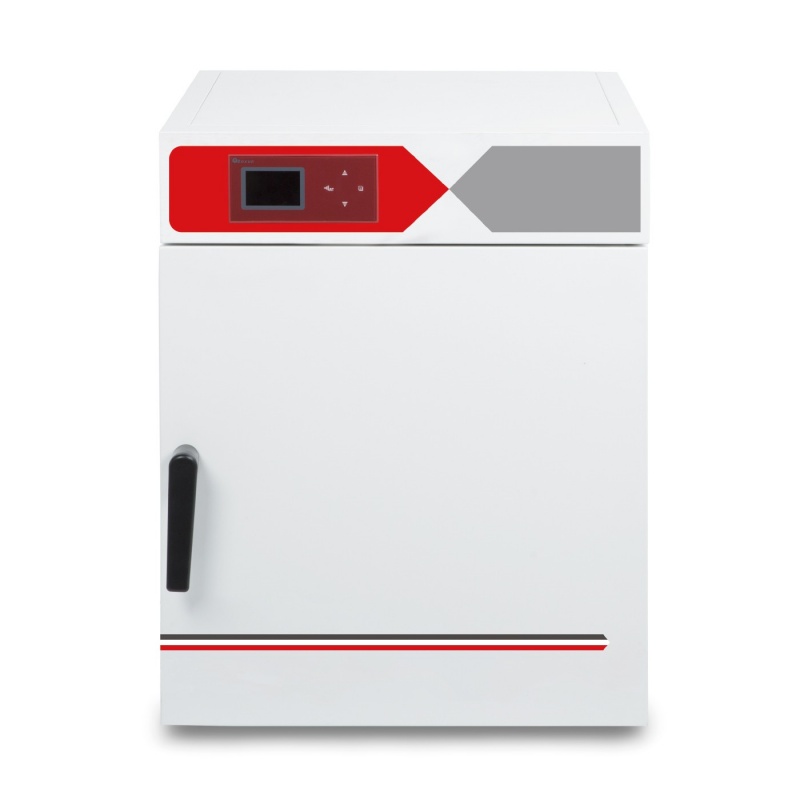

BXH series Drying Oven
  • Product Category: Products Oven / Furnace
  • product description:The BXH series Drying Oven utilizes the heat radiation and air circulation convection inside the oven to achieve drying, baking, wax melting, sterilization, solidification, aging, heat removal, and plant tissue withering of items. Applied in fields such as biopharmaceuticals, food, inspection and testing, inspection and quarantine, agriculture, forestry, animal husbandry, and fishery, environmental protection, scientific research, electrical engineering, instrumentation, electronic components, polymer materials, plastics, aviation, machinery, and chemical engineering.
  • Products Description


    The BXH series Drying Oven utilizes the heat radiation and air circulation convection inside the oven to achieve drying, baking, wax melting, sterilization, solidification, aging, heat removal, and plant tissue withering of items. Applied in fields such as biopharmaceuticals, food, inspection and testing, inspection and quarantine, agriculture, forestry, animal husbandry, and fishery, environmental protection, scientific research, electrical engineering, instrumentation, electronic components, polymer materials, plastics, aviation, machinery, and chemical engineering.


    Products Features


    1

    LCD display, real-time display of set temperature and actual temperature value, operation status, fan segment number and working status;

    2

    Backlit touch button, easy to operate, low failure rate;

    3

    BRIGHT I control system can automatically compensate the value of control parameters according to the change of environment;

    4

    With countdown reservation function, the time range is 0 to 9999min;

    5

    The fan has 6-stage speed regulation, which can meet the requirements of different wind speeds and avoid sample loss caused by dust;

    6

    Adjustable electrical damper, and the air exchange rate can be adjusted according to different samples or heating rates;
    Double over temperature alarm function (A. temperature sensor system, B. independent temperature control switch), to ensure the equipment safe operation;

    7

    Enhanced shelf design, convenient to take and place samples, support arbitrary positioning, high load capacity;

    8

    The rotary two-stage locking structure has good sealing performance;

    9

    Preheating chamber design, the air directly into the chamber after heating and mixing, to ensure rapid heating and good heat distribution effect;

    10

    Four rounded corners of the chamber, the shelves are easy to disassemble and clean;

    11

    Equipped with a RS-485 interface.



    Products Technical Parameters


    Model BXH-65 BXH-130 BXH-210 BXH-280 BXH-450
    Power supply voltage 220V±10V-50/60Hz

    Temperature

    control range

    RT+5~300℃
    Resolution 0.1℃
    Fluctuation ±0.3°C (150°C) ±0.5°C (150°C)
    Uniformity ±2°C (150°C) ±1.9°C (150°C) ±1.5°C (150°C) ±2.2°C (150°C) ±2.5°C (150°C)
    Heating rate 17min (150℃) 20min (150℃)
    22min (150℃)
    Rated power 1550W 2150W 2750W 2750W 3500W
    Timing range 0~9999min/h

    Reservation

    range

    0~9999min
    Volume 64L 129L 210L 284L 452L

    Inner tank size

    (mm)

    410*350*450 570*400*570 630*530*630 720*530*745 600*580*1300

    Dimensions

    (mm)

    555*566*722 715*616*842 775*746*902 865*746*1019 774*845*1704
