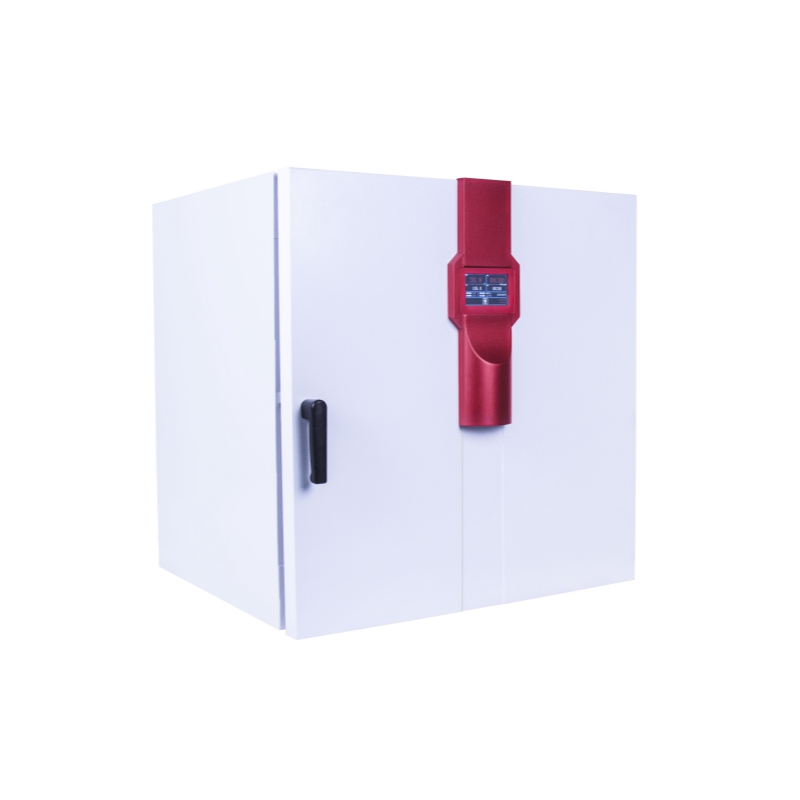

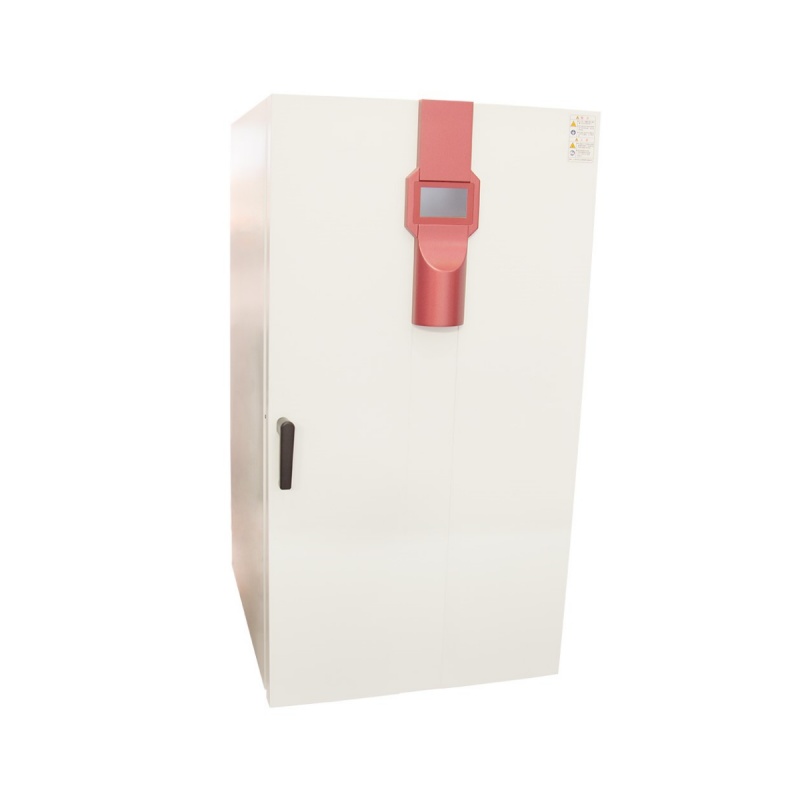

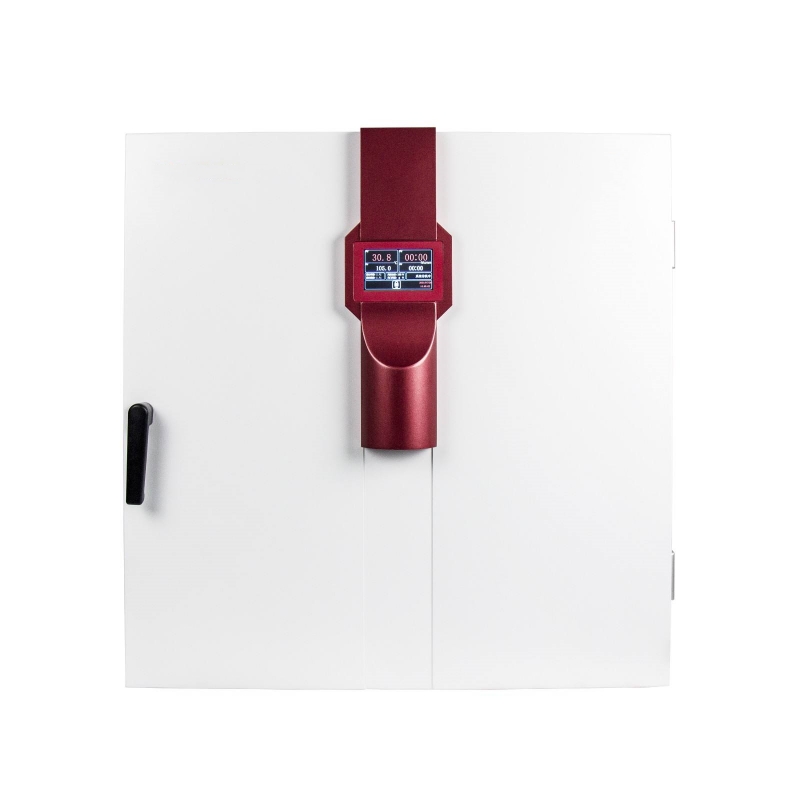

BXH-S series Precision Oven
  • Product Category: Products Oven / Furnace
  • product description:The BXH-S series Precision Oven utilizes thermal radiation and air circulation convection inside the box to achieve drying, baking, wax melting, sterilization, solidification, aging, heat removal, and plant tissue withering of items. Applied in fields such as biopharmaceuticals, food, inspection and testing, inspection and quarantine, agriculture, forestry, animal husbandry, and fishery, environmental protection, scientific research, electrical engineering, instrumentation, electronic components, polymer materials, plastics, aviation, machinery, and chemical engineering.
  • Products Description


    The BXH-S series Precision Oven utilizes thermal radiation and air circulation convection inside the box to achieve drying, baking, wax melting, sterilization, solidification, aging, heat removal, and plant tissue withering of items. Applied in fields such as biopharmaceuticals, food, inspection and testing, inspection and quarantine, agriculture, forestry, animal husbandry, and fishery, environmental protection, scientific research, electrical engineering, instrumentation, electronic components, polymer materials, plastics, aviation, machinery, and chemical engineering.


    Products Features


    1

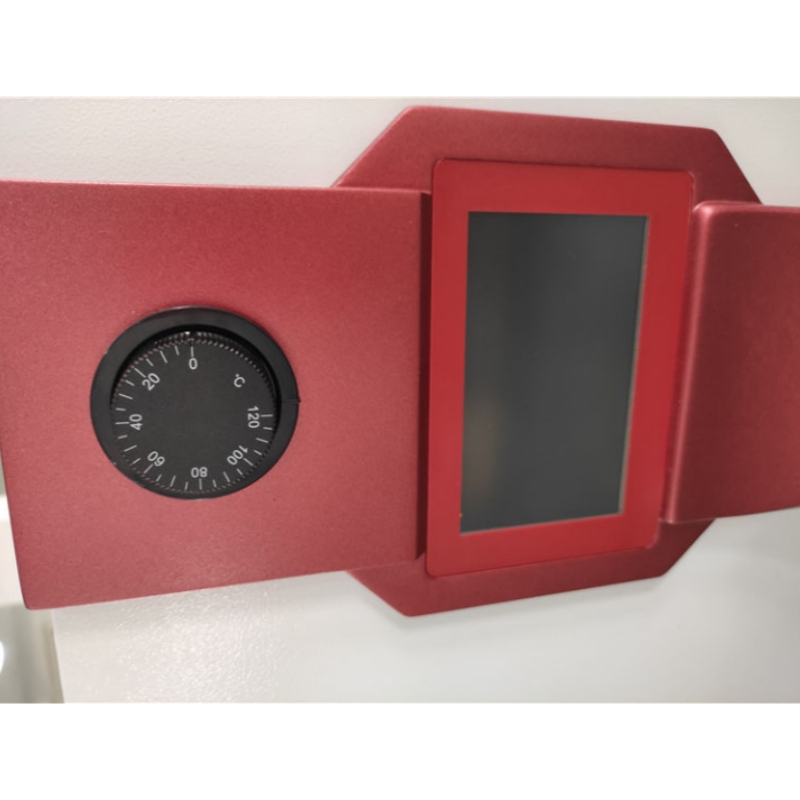

    5 inch high definition touch screen, BRIGHT II control system can automatically compensate the value of control parameters according to the change of environment;

    2

    4 million data can be stored, and export them by U disk in unchangeable file format for viewing and backup, and trace the data;

    3

    Temperature record data and curves, alarm recording information can be viewed in real time;

    4

    Multi-level password management function to prevent operation at will;

    5

    With calendar reservation function;

    6

    With programmed temperature control function, heating and cooling rate can be controlled;

    7

    Double overtemperature alarm (a. controlled by temperature sensor system, b. independent temperature control switch);

    8

    Programmable design, it can be set 30 segments 99 cycles;

    9

    The 6-stage speed regulation of the fan can meet the requirements of different wind speed;

    10

    The ventilation door can control the opening of the air outlet in 10 stages, which can meet the demand of different ventilation speed rates;

    11

    Preheating chamber design, the air directly into the chamber after heating and mixing, to ensure rapid heating and good heat distribution effect;

    12

    The rotary two-stage locking structure has good sealing performance;

    13

    Aluminum foil fully enclosed 5cm insulation layer, good insulation effect, zero leakage of glass fiber;

    14

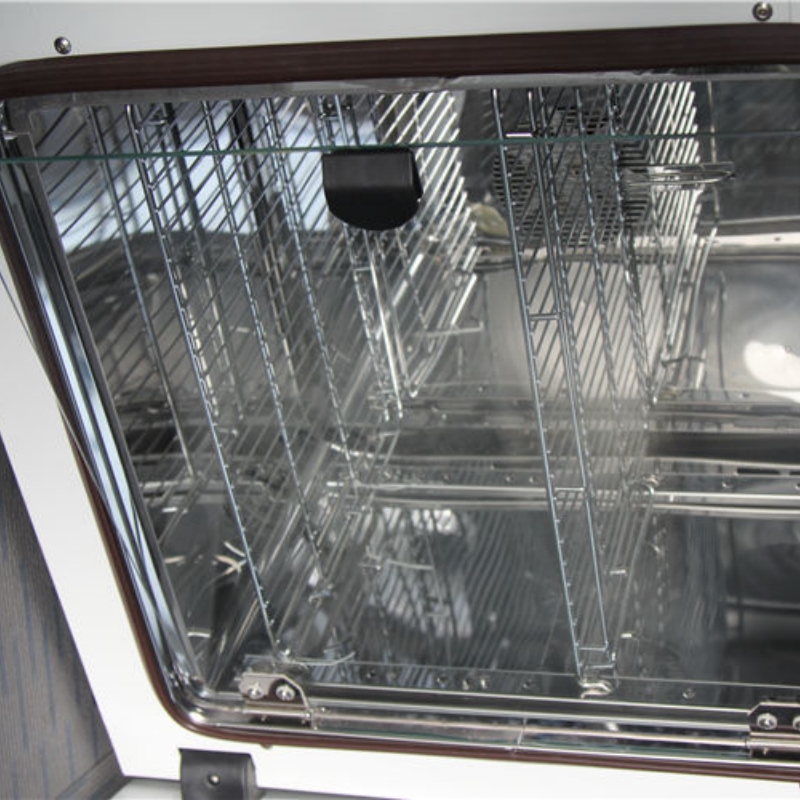

    Enhanced shelf design, convenient to take and place samples, support arbitrary positioning, high load capacity;

    15

    Four rounded corners of the chamber, the shelves are easy to disassemble and clean;

    16

    Equipped with 2 RS-485 interfaces and 1 USB interface.


    Products Technical Parameters



    Model

    BXH-65S

    BXH-130S

    BXH-280S

    BXH-450S

    BXH-530S

    Volume [L]

    64

    129

    284

    452

    530

    Temp. Range [°C]

    RT+5~300

    RT+5~300

    RT+5~300

    RT+5~300

    RT+5~300

    Temp. Fluctuation [°C]

    ±0.3

    ±0.3

    ±0.5

    ±0.5

    ±0.5

    Temp. Uniformity [°C]

    ±2

    ±1.9

    ±2.2

    ±2.5

    ±2.5

    Heating-up Time to 150°C [min]

    17

    20

    20

    22

    22

    Recovery time after 30 seconds door open at 150°C [min]

    7

    8

    8

    9

    9

    Power [kW]

    1.5

    1.8

    2.7

    3.5

    3.5

    Internal Dimensions W×D×H [mm]

    410×350×450

    570×400×570

    720×530×745

    600×580×1300

    1070×595×835

    Housing Dimensions W×D×H [mm]

    575×608×637

    735×658×757

    885×788×932

    774×845×1574

    1235×850×1080

    Number of Shelves (std./max.) [pc]

    2 / 5

    2 / 7

    3 / 9

    4 / 13

    3/12

    Load per Shelf [kg]

    25

    25

    25

    25

    25
