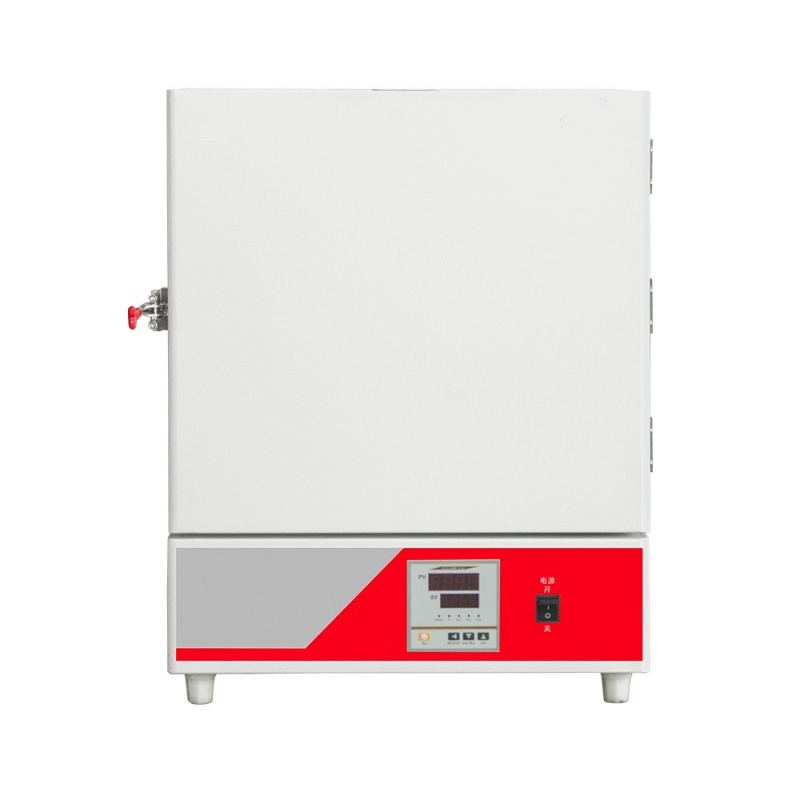

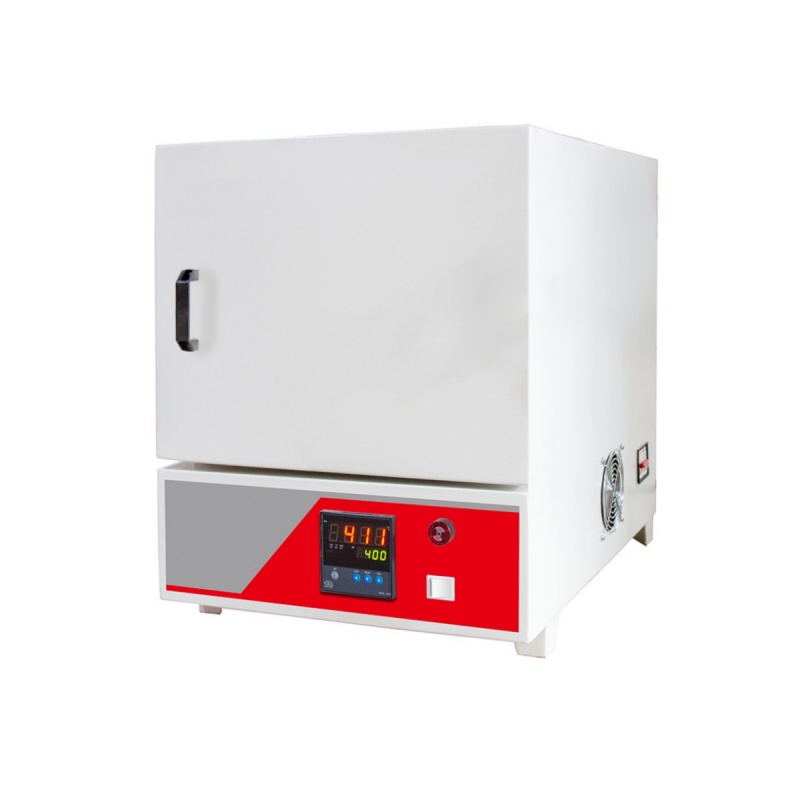

SX2-Z series Furnace
  • Product Category: Products Oven / Furnace
  • product description:The SX2-Z series Furnace uses current to heat the electric heating elements or heating medium inside the furnace, thereby achieving heating and processing of workpieces or materials, inspection of drugs, pre-treatment of medical samples, analysis and processing of water quality, environmental samples, and analysis of coal moisture, ash content, volatile matter, ash melting point, ash composition, and elements. Applied in fields such as medicine, biology, inspection and quarantine, medical and health care, coal, building materials, chemical industry, etc.
  • Products Description



    The SX2-Z series Furnace uses current to heat the electric heating elements or heating medium inside the furnace, thereby achieving heating and processing of workpieces or materials, inspection of drugs, pre-treatment of medical samples, analysis and processing of water quality, environmental samples, and analysis of coal moisture, ash content, volatile matter, ash melting point, ash composition, and elements. Applied in fields such as medicine, biology, inspection and quarantine, medical and health care, coal, building materials, chemical industry, etc.


    Products Features



    1

    PMMA l operating system, accurate temperature control, with fixed value operation and timing operation functions

    2

    Optional nickel-chromium wire, silicon carbon rod heating element, good thermal conductivity

    3

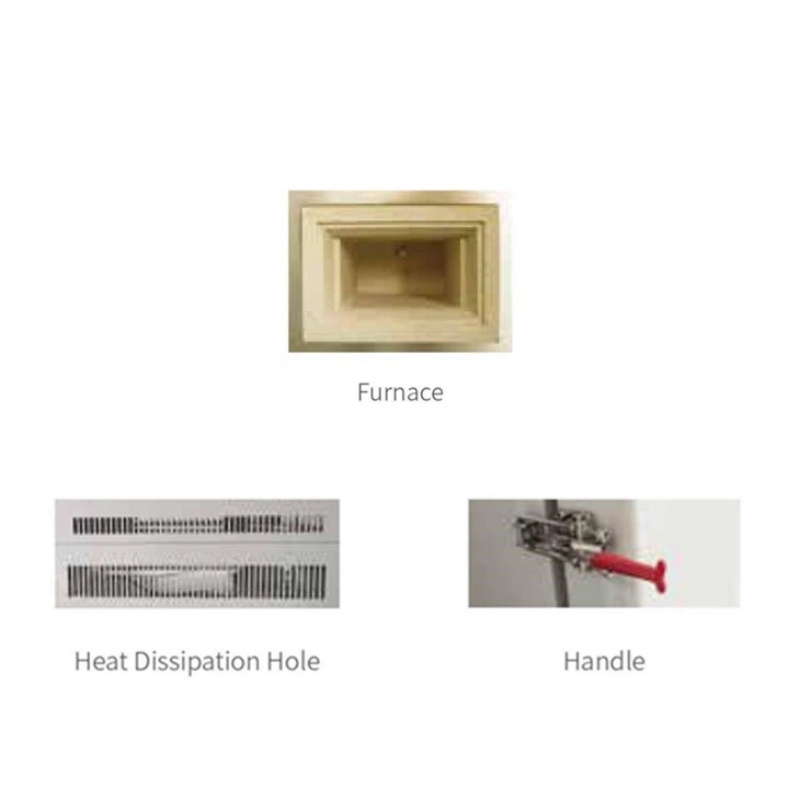

    The furnace and the furnace door are made of one-time forming refractory brick material with flat surface treatment and no falling off

    4

    Stainless steel inner door liner design, easier to clean than traditional liner, not easy to crack or discolor

    5

    The insulation layer between 1000 and 1200 degrees furnace and shell is made of ceramic fiber loose cotton and expanded pearl, while the insulation layer between 1300 degrees furnace and shell is made of ceramic fiber board, which has excellent thermal insulation performance

    6

    The outer wall of the furnace door and furnace adopts full cavity outer wall ventilation design, and the shell can be controlled within 40°C when using high temperature

    7

    With over current, over voltage, overheating, leakage, short circuit, open door power off and other safety protection measures to ensure safe use

    8

    Optional ordinary program controller or smart LCD touch screen controller

    9

    Note :①1300 degree resistance furnace can only be set to a fixed value, timing function needs to select a controller


    Products Technical Parameters



    Model

    SX2-2.5-10Z/

    SX2-2.5-12Z

    SX2-4-10Z/

    SX2-5-12Z

    SX2-8-10Z/

    SX2-8-12Z

    SX2-12-10Z/

    SX2-12-12Z

    SX2-4-13Z SX2-6-13Z SX2-8-13Z

    Heating element

    Nickel chromium wire

    Silicon carbide rod

    Volume (L)

    2

    7.2

    16

    30

    3.8 6.8 18

    Power (kW)

    2.5

    5

    10

    12

    4 6 8

    Voltage (v)

    220

    220

    380

    380

    220 380 380

    Temperature control range (℃)

    RT+30~1000/RT+30~1200

    RT+30~1300

    Maximum temperature (℃)

    900/1100

    1200

    Heating rate (℃/min)

    20~30

                                              25~40

    Fluctuation (℃)

    ±2

    Studio size (length×width×height) (mm)

    120×200×80

    200×300×120

    250×400×160

    300×500×200

    150×250×100 150×300×150 250×400×180

    Overall dimension

    (length×width×height) (mm)

    490×570×660

    570×670×720

    620×785×760

    690×885×800

    550×685×645 505×685×645 680×790×860

    Gross/net weight (kg)

    58/49

    90/76

    118/110

    174/148

    106/81 106/81 191/155
