SX2-TZ Series (high temperature) furnace
  • Product Category: Products Oven / Furnace
  • product description:The SX2-TZ Series (high temperature) furnace uses current to heat the electric heating elements or heating medium inside the furnace, thereby achieving heating and processing of workpieces or materials, inspection of drugs, pre-treatment of medical samples, analysis and processing of water quality, environmental samples, and analysis of coal moisture, ash content, volatile matter, ash melting point, ash composition, and elements. Applied in fields such as medicine, biology, inspection and quarantine, medical and health care, coal, building materials, chemical industry, etc.
  • Products Description



    Ceramic fiber intelligent programmable high temperature resistance furnace is a kind of electric heating element or heating medium in the furnace using the current to heat, so as to realize the heating and processing of the workpiece or material, the inspection of drugs, the pretreatment of medical samples, the analysis and treatment of water quality, environment and other samples, the analysis of coal moisture, ash, volatiles, ash melting point, ash composition and elements. Used in medicine, biology, inspection and quarantine, medical health, coal, building materials, chemical industry and other fields.


    Products Features



    1

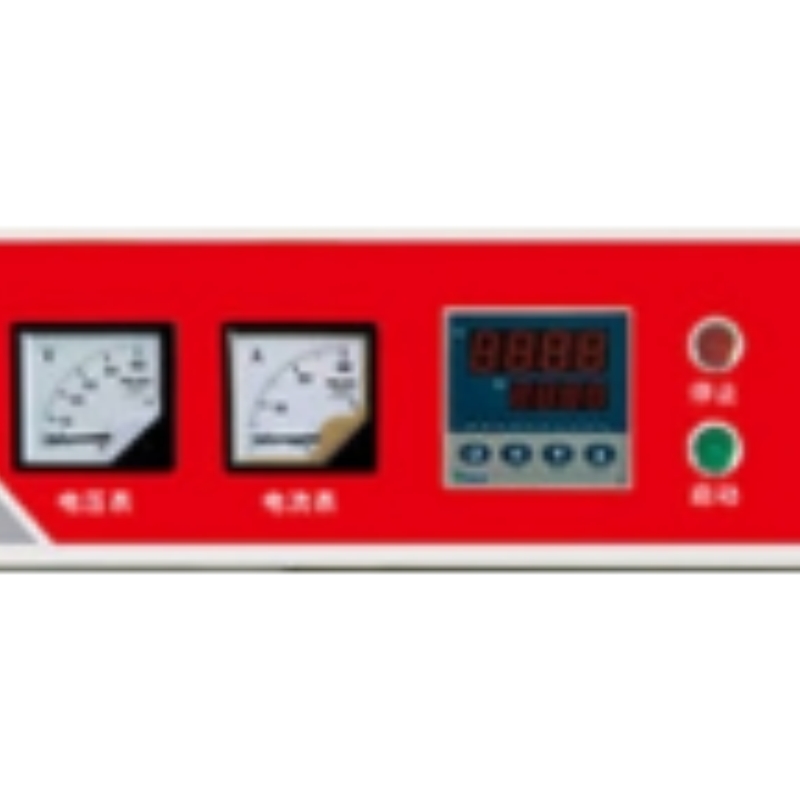

    Digital display program controller, accurate temperature control, 30 segments of temperature control program can be set;

    2

    The heating element is silicon molybdenum rod which has good temperature resistance, strong oxidation resistance and long service life;

    3

    Stainless steel inner door liner, easy to clean;

    4

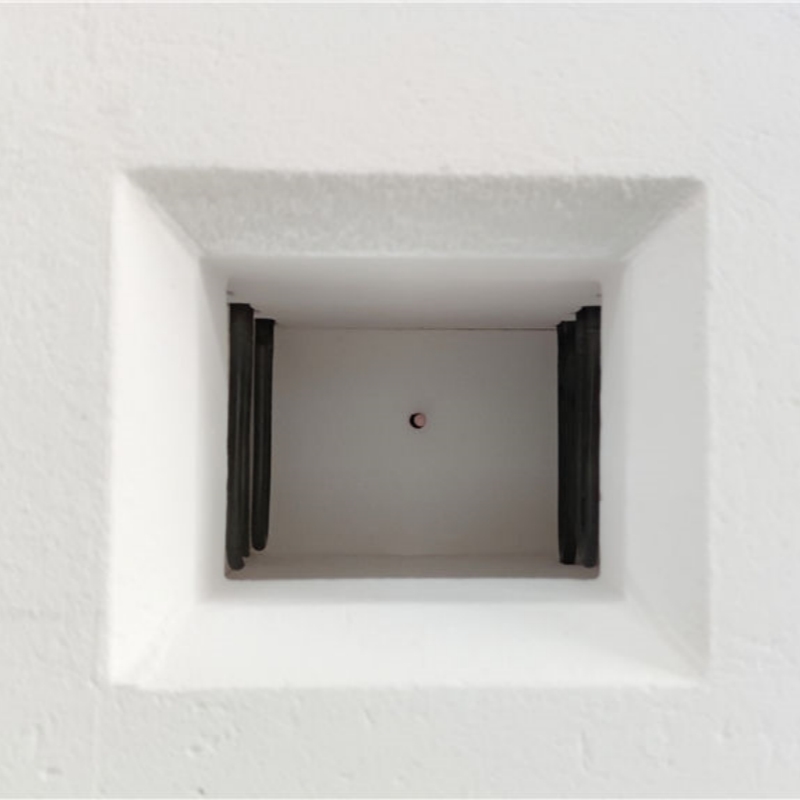

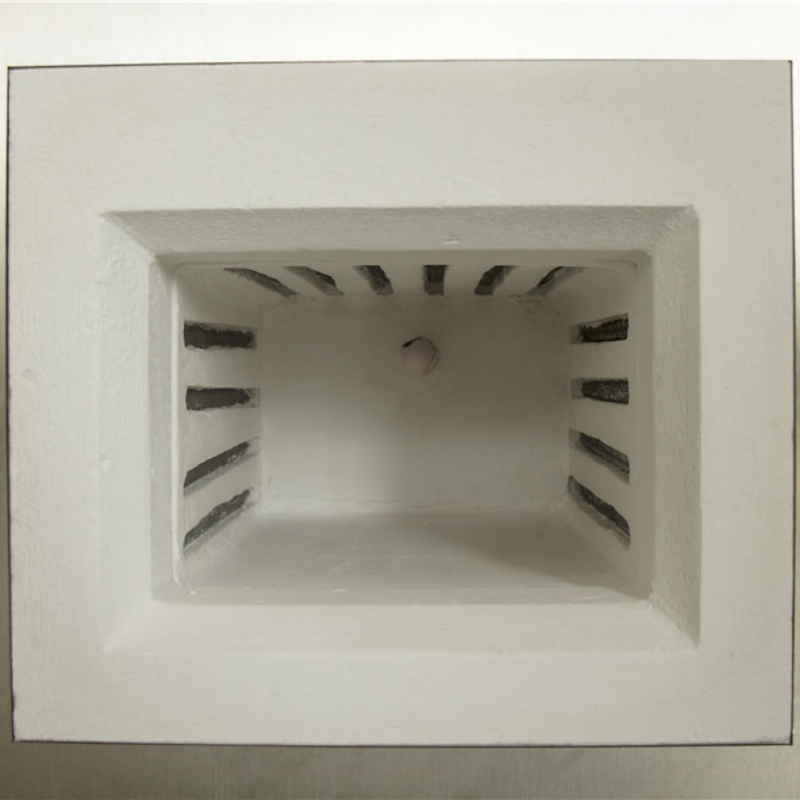

    Ceramic fiber chamber, which has the characteristics of light weight, fast heating, low energy consumption and good heat insulation;

    5

    Splicing structure chamber, which is convenient for maintenance;

    6

    The insulation layer adopts ceramic fiberboard;

    7

    With a group of current and voltage display instrument;

    8

    Reinforced hinge and adjustable locking door buckle;

    9

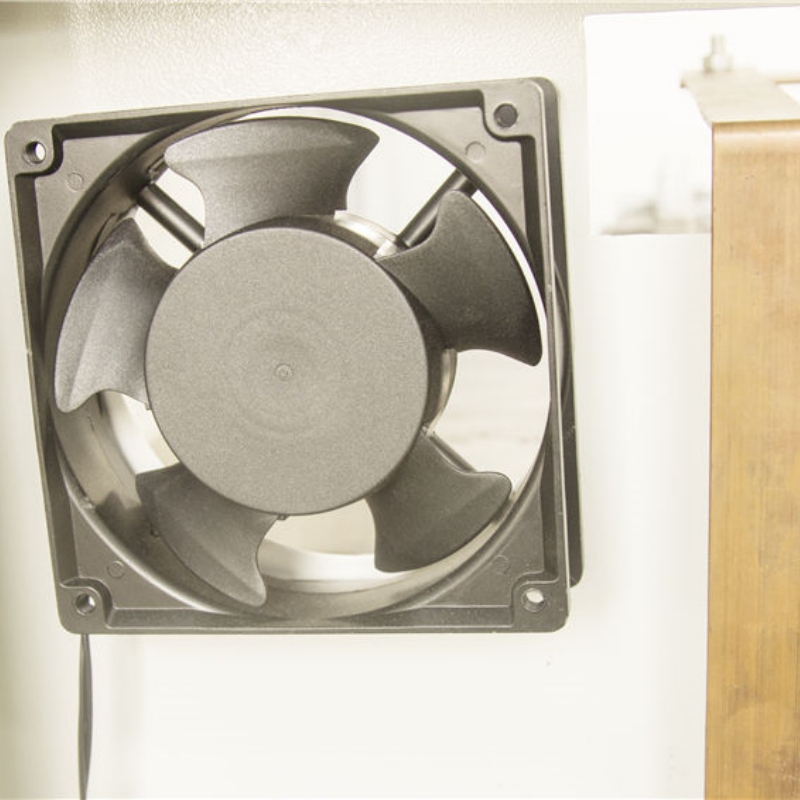

    The cooling fan prevents the circuit from overheating;

    10

    Removable cover plate for replacing and maintaining the heating element;

    11

    Whole chamber outer wall ventilation design, which can keep the shell within 40°C during working;

    12

    Over current, over-voltage, leakage, short circuit, open door power off and other safety protections.



    Products Technical Parameters



    Model

    SX2-8-16TZ

    SX2-9-16TZ

    SX2-12-16TZ SX2-8-17TZ

    SX2-9-17TZ

    SX2-12-17TZ

    Heating element

    Silicon molybdenum rod

    Volume (L)

    5.4

    9

    12 5.4

    9

    12

    Power (kW)

    8

    9

    12 8

    9

    12

    Voltage (V)

    380

    380

    380 380

    380

    380

    Temperature control range (℃)

    RT+30~1600

    RT+30~1600

    RT+30~1600 RT+30~1700 RT+30~1700 RT+30~1700

    Maximum opening temperature (℃)

    1500

    1500

    1500 1600 1600 1600

    Heating rate (℃/min)

    30~50

    Fluctuation (℃)

    ±2

    Overall width (mm)

    650

    700

    700 650

    700

    700

    Shape depth (mm)

    870

    870

    970 870

    870

    970

    Overall height (mm)

    1565

    1595

    1605 1565

    1595

    1605

    Working width (mm)

    150

    200

    200 150

    200

    200

    Working depth (mm)

    300

    300

    300 300

    300

    300

    Working height (mm)

    120

    150

    220 120

    150

    200

    Net weight (kg)

    228

    230

    259 228

    230

    259

    Gross weight (kg)

    243

    256

    288 243

    246

    288
