The BXSX Series Furnace uses current to heat the electric heating elements or heating medium inside the furnace, thereby achieving heating and processing of workpieces or materials, inspection of drugs, pre-treatment of medical samples, analysis and processing of water quality, environmental samples, and analysis of coal moisture, ash content, volatile matter, ash melting point, ash composition, and elements. Applied in fields such as medicine, biology, inspection and quarantine, medical and health care, coal, building materials, chemical industry, etc.

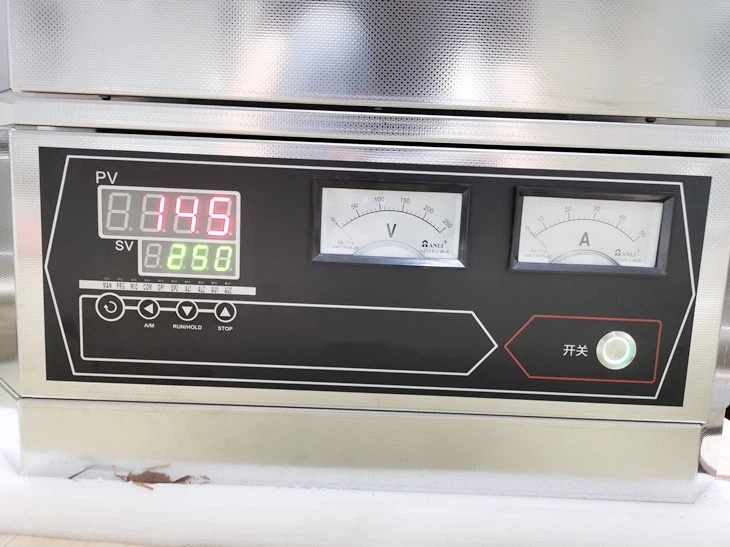

Digital display program controller, accurate temperature control, 30 segments of temperature control program can be set;
The heating element is Fe-Cr-Al alloy which has good temperature resistance, strong oxidation resistance and long service life;

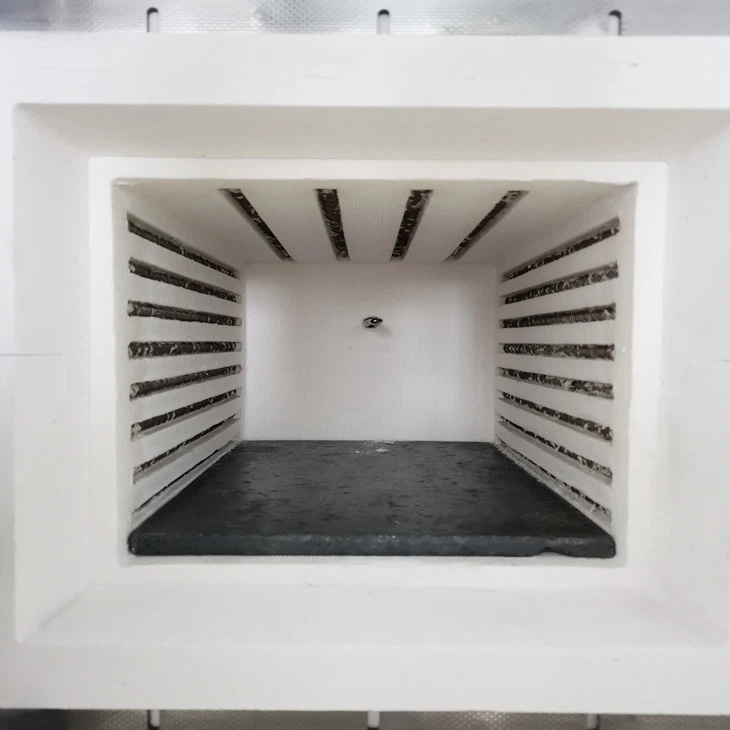

Polycrystalline mullite fiber chamber, which has the characteristics of high temperature resistance, easy processing and small thermal conductivity;
Whole chamber outer wall ventilation design, which can keep the shell within 50°C during working;
The insulation layer adopts alumina anvil;
With a group of current and voltage display instrument;
The cooling fan prevents the circuit from overheating;
Over current, over-voltage, over heat, leakage, short circuit, open door power off and other safety protections.
| Model |
BXSX-0712 |
BXSX-1212 |
|
Volume [L] |
7 | 12 |
| Nominal Maximum Temp [℃] |
1200 |
1200 |
| Maximum Operating Temp [℃] | 1100 | 1100 |
| Temp.Fluctuation [℃] | ±1 | ±1 |
| Power [kW] | 3 | 4 |
| Power Supply [V] | 220 | 380 |
| Intemal Dimensions WxDxH [mm] | 300x200x120 | 300x200x200 |
| Housing Dimensions WxDxH [mm] | 560x460x675 | 570x480x775 |
| Weight [kg] | 85 | 90 |
