BXSX-S Series Furnace
  • Product Category: Products Oven / Furnace
  • product description:The BXSX-S Series Furnace uses current to heat the electric heating elements or heating medium inside the furnace, thereby achieving heating and processing of workpieces or materials, inspection of drugs, pre-treatment of medical samples, analysis and processing of water quality, environmental samples, and analysis of coal moisture, ash content, volatile matter, ash melting point, ash composition, and elements. Applied in fields such as medicine, biology, inspection and quarantine, medical and health care, coal, building materials, chemical industry, etc.
  • Products Description



    The BXSX-S Series Furnace uses current to heat the electric heating elements or heating medium inside the furnace, thereby achieving heating and processing of workpieces or materials, inspection of drugs, pre-treatment of medical samples, analysis and processing of water quality, environmental samples, and analysis of coal moisture, ash content, volatile matter, ash melting point, ash composition, and elements. Applied in fields such as medicine, biology, inspection and quarantine, medical and health care, coal, building materials, chemical industry, etc.


    Products Features



    1

    BRIGHT I intelligent operating system, accurate temperature control;

    2

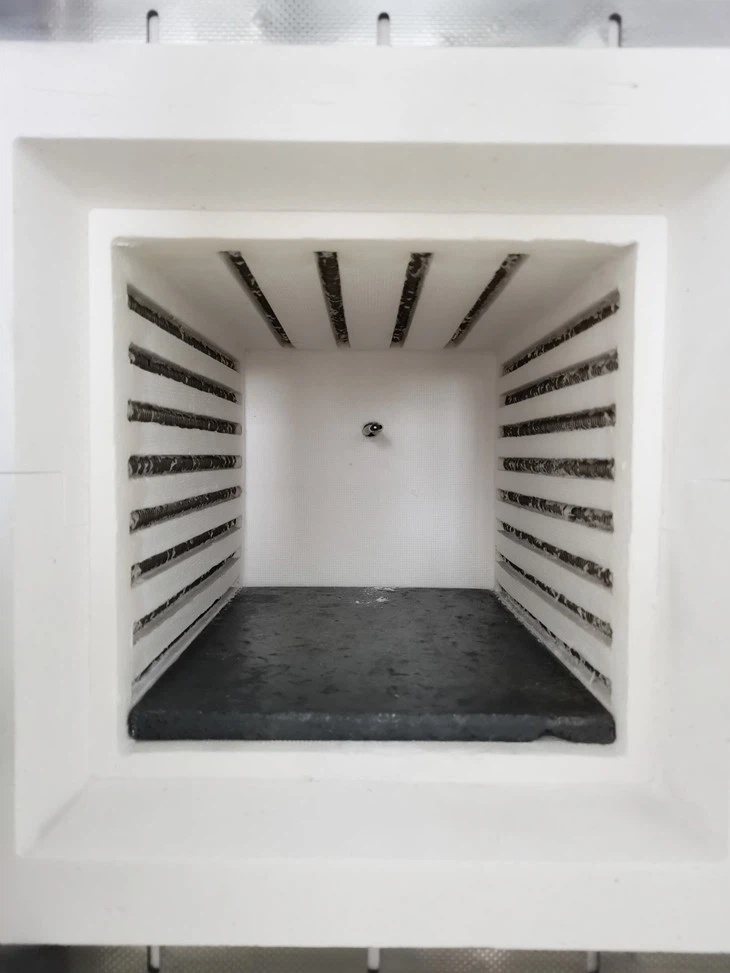

    The selection of polycrystalline mullite fiber furnace, compared with the traditional furnace, high temperature resistance, easy processing, not vulnerable to damage, high temperature deformation, small thermal conductivity;

    3

    Iron chromium aluminum as a heating element, good high temperature resistance, strong oxidation resistance, long service life;

    4

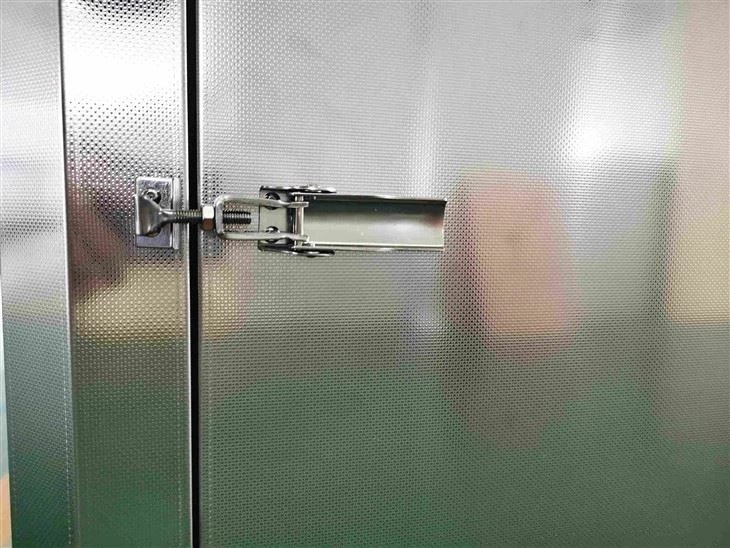

    The ventilation design of the furnace door and the outer wall of the furnace should be combined with heat sensing to force heat dissipation;

    5

    The insulation layer between the furnace and the shell is made of alumina insulation anvil, which has excellent insulation performance;

    6

    Integrated component design, no solder joints on the surface, stronger unity;

    7

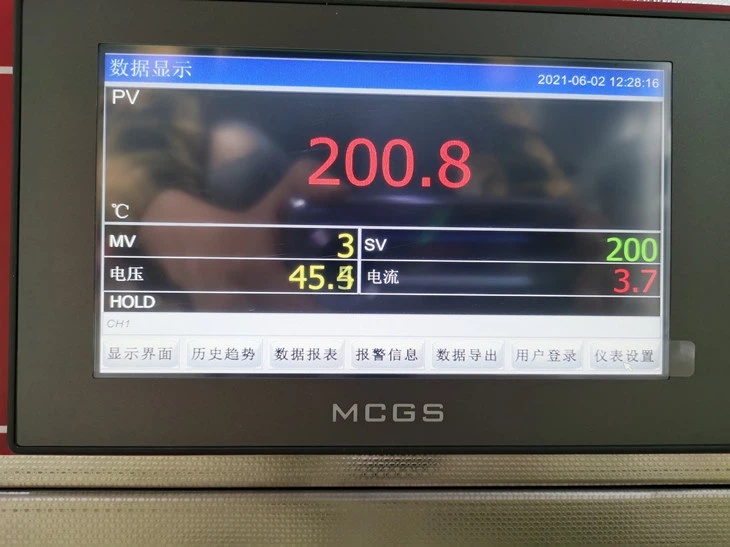

    The screen displays the current and voltage value, and displays the current and voltage status in real time;

    8

    Screen support data export, history view, real-time curve, alarm view;

    9

    A number of cooling fans are equipped to prevent the circuit from overheating and ensure the safe and reliable use proces;

    10

    Optional communication software to achieve remote control, real-time viewing, historical records, data export;

    11

    With over current, over voltage, overheating, leakage, short circuit, open the door and power off and other safety protection measures.


    Products Technical Parameters



    Model

    BXSX-0712S

    BXSX-1212S

    Studio size (length×width×height) (mm)

    300×200×120

    300×200×200

    Dimensions (length×width×height) (mm)

    560×460×675

    570×480×775

    Volume (L)

    7

    12

    Voltage (V)

    220

    220

    Nominal Maximum Temp [] 1200 1200
    Maximum Operating Temp  [] 1100 1100
    Power (kW)

    3

    4

    Temp.Fluctuation  []

    ±1

    ±1
