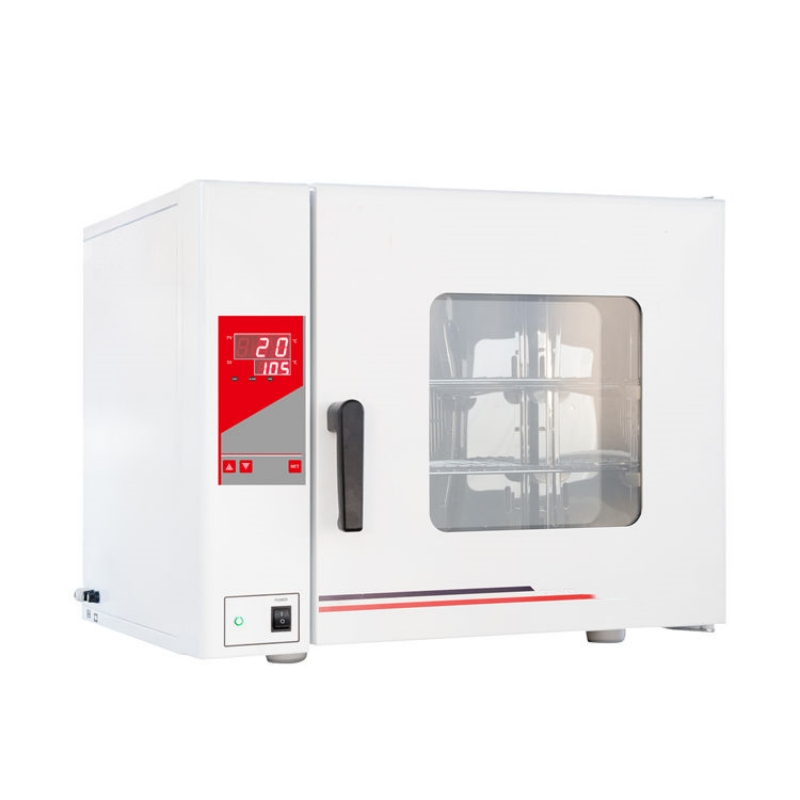

The GZX series (200 ℃) electric blast drying oven utilizes the heat radiation and air circulation convection inside the oven to achieve drying, baking, wax melting, sterilization, solidification, aging, heat source removal, and plant tissue withering of items. Applied in fields such as biopharmaceuticals, food, inspection and testing, inspection and quarantine, agriculture, forestry, animal husbandry, and fishery, environmental protection, scientific research, electrical engineering, instrumentation, electronic components, polymer materials, plastics, aviation, machinery, and chemical engineering.

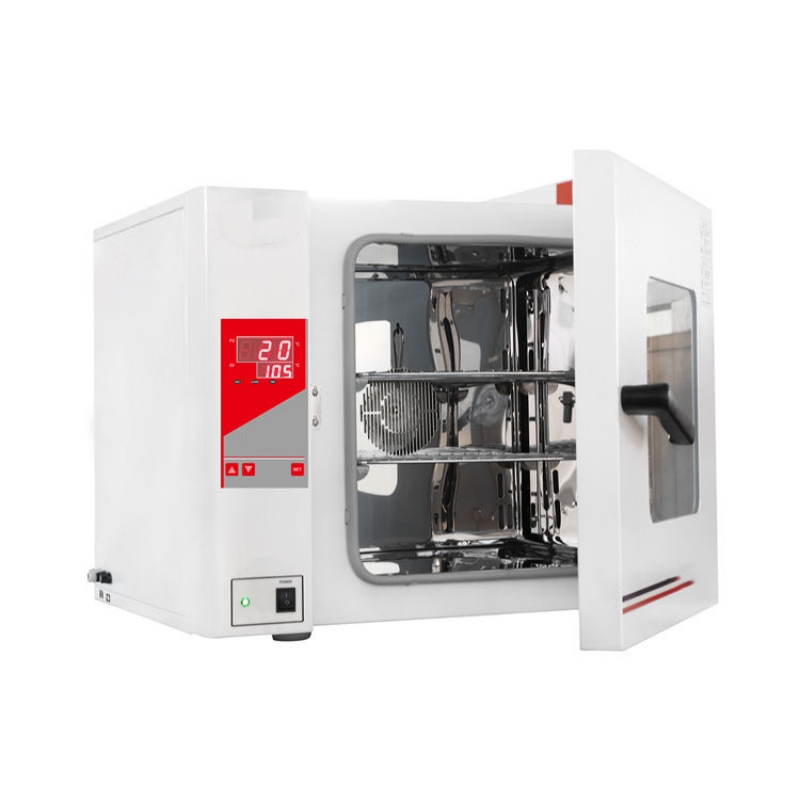

The shell is made of cold-rolling steel with static spray plastics, the working chamber is made of mirror stainless steel, the shelves can be adjusted at will;
Microcomputer control system with temperature and time control and over-temperature alarm;
Preheating chamber design, the air directly into the chamber after heating and mixing, to ensure rapid heating and good heat distribution effect;
Dual LED screens and touch keys;
Shaded pole motor and wind blade, with air convection breeze device, the air in the chamber can be renewed and circulated;
Observation window on the door, convenient for users to observe;
The rotary two-stage locking structure has good sealing performance;
Four rounded corners of the chamber, the shelves are easy to disassemble and clean;
Power supply recovery function, data will not be lost when power failure and system halted.
|
Model |
GZX-9023MBE |
GZX-9030MBE |
GZX-9070MBE |
GZX-9140MBE |
GZX-9240MBE |
GZX-9420MBE |
|
Volume [L] |
20 |
40 |
76 |
142 |
234 |
456 |
|
Temp. Range [°C] |
RT+5~200 |
RT+5~200 |
RT+5~200 |
RT+5~200 |
RT+5~200 |
RT+5~200 |
|
Temp. Resolution [°C] |
1 |
1 |
1 |
1 |
1 |
1 |
|
Temp. Fluctuation at 105°C [°C] |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
|
Temp. Uniformity [%] |
±2.5 |
±2.5 |
±2.5 |
±2.5 |
±2.5 |
±2.5 |
|
Heating Rate to 180°C [°C/min] |
˃4 |
˃4 |
˃4 |
˃4 |
˃4 |
˃4 |
|
Power [W] |
750 |
950 |
1350 |
1750 |
2150 |
3100 |
|
Power Supply [V, Hz] |
220±10%, 50±2% |
220±10%, 50±2% |
220±10%, 50±2% |
220±10%, 50±2% |
220V ± 10%, 50±2% |
380 , 50 |
|
Timer Range [min] |
0~999 |
0~999 |
0~999 |
0~999 |
0~9999 |
0~9999 |
|
Internal Dimensions W×D×H [mm] |
300×335×275 |
350×330×350 |
450×380×450 |
550×470×550 |
600×520×750 |
595×515×1295 |
|
Housing Dimensions W×D×H [mm] |
568×447×452 |
640×556×505 |
740×606×605 |
840×696×705 |
890×746×905 |
780×696×1760 |
|
Number of Shelves (std./max.) [pc] |
2 / 3 |
2 / 4 |
2 / 5 |
3 / 7 |
3 / 10 |
3 / 6 |
|
Load per Shelf [kg] |
15 |
15 |
15 |
15 |
15 |
15 |
