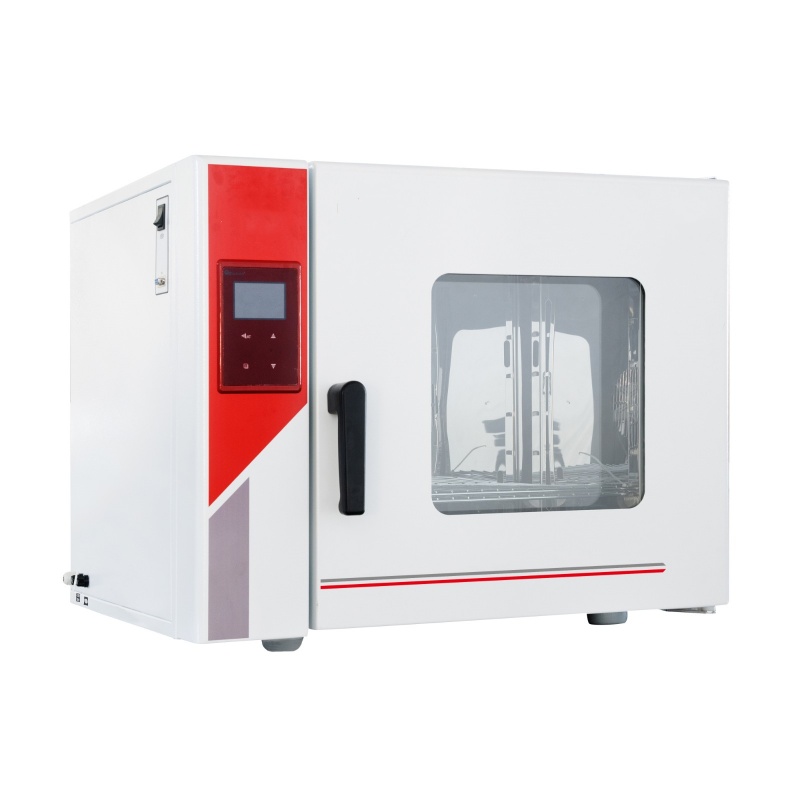

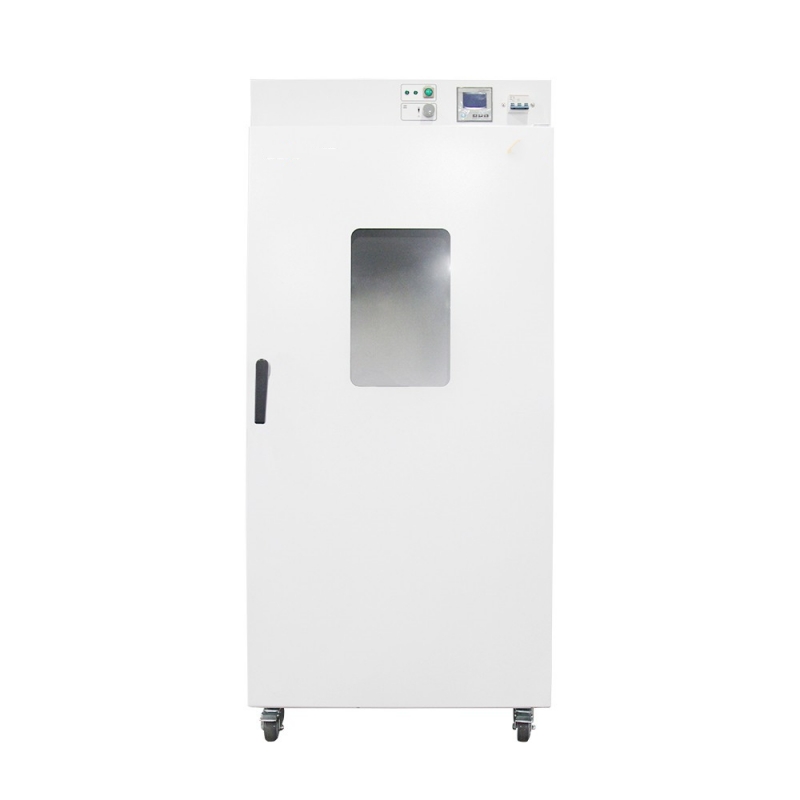

The BGZ series (250 ℃) Drying Oven utilizes the heat radiation and air circulation convection inside the oven to achieve drying, baking, wax melting, sterilization, solidification, aging, heat source removal, and plant tissue withering of items. Applied in fields such as biopharmaceuticals, food, inspection and testing, inspection and quarantine, agriculture, forestry, animal husbandry, and fishery, environmental protection, scientific research, electrical engineering, instrumentation, electronic components, polymer materials, plastics, aviation, machinery, and chemical engineering.
The use of high quality insulation materials to make the whole machine performance more superior
The door has a large viewing Angle window to facilitate user observation
The four corners of the cavity are designed with rounded corners, and the shelf is easy to disassemble and easy to clean
With countdown reservation function
Preheating chamber design, air heating and mixing directly into the studio, rapid heating and heat distribution
Using the hood motor and wind blade, with air convection breeze device, the air in the cavity can be updated
Programmable program design, can be set 10 100 cycles
The fan speed regulation in 6 sections can ensure the requirements of different wind speeds and avoid sample loss caused by dust samples
Refer to standard GB/T 30435-2013
With call recovery function, to ensure that the device will not be due to power failure, crash caused by data loss
Using the newly developed PMMA II operating system, touch buttons, color LCD display parameters, with temperature control
The shell is made of cold-rolled steel plate, electrostatic spray on the surface, mirror stainless steel in the inner liner, and the partition can be adjusted arbitrarily
Rotary two-stage locking structure, to ensure that the door and the import seal fit higher, to achieve good sealing.
|
Model |
BGZ-30 |
BGZ-70 |
BGZ-140 |
BGZ-240 |
BGZ-420 |
|
Volume [L] |
40 |
76 |
142 |
234 |
456 |
|
Temp. Range [°C] |
RT+5~250 |
RT+5~250 |
RT+5~250 |
RT+5~250 |
RT+5~250 |
|
Temp. Resolution [°C] |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
|
Temp. Fluctuation at 105°C [°C] |
±1 |
±1 |
±1 |
±1 |
±1 |
|
Temp. Uniformity [%] |
±2 |
±2 |
±2 |
±2 |
±2 |
|
Heating Rate to 180°C [°C/min] |
˃4 |
˃4 |
˃4 |
˃4 |
˃4 |
|
Power [W] |
950 |
1350 |
1750 |
2150 |
3100 |
|
Power Supply [V, Hz] |
220±10%, 50±2% |
220±10%, 50±2% |
220±10%, 50±2% |
220±10%, 50±2% |
380V/50H |
|
Timer Range [min] |
0~9999 |
0~9999 |
0~9999 |
0~9999 |
0~9999 |
|
Reservation Range [min] |
0~999 |
0~999 |
0~999 |
0~999 | 0~999 |
|
Internal Dimensions W×D×H [mm] |
350×330×350 |
450×380×450 |
550×470×550 |
600×520×750 |
595×515×1295 |
|
Housing Dimensions W×D×H [mm] |
640×556×505 |
740×606×605 |
840×696×705 |
890×746×905 |
780×696×1760 |
|
Number of Shelves (std./max.) [pc] |
2 / 4 |
2 / 5 |
3 / 7 |
3 / 10 |
3 / 6 |
|
Load per Shelf [kg] |
15 |
15 |
15 |
15 |
15 |
| Gross/net weight (kg) | 47 / 37 | 61 / 50 | 91 / 68 | 111 / 88 | 204 / 176 |
| Packing size (mm) | 720×605×650 | 820×655×745 | 920×745×850 | 970×800×1050 | 860×830×1850 |
