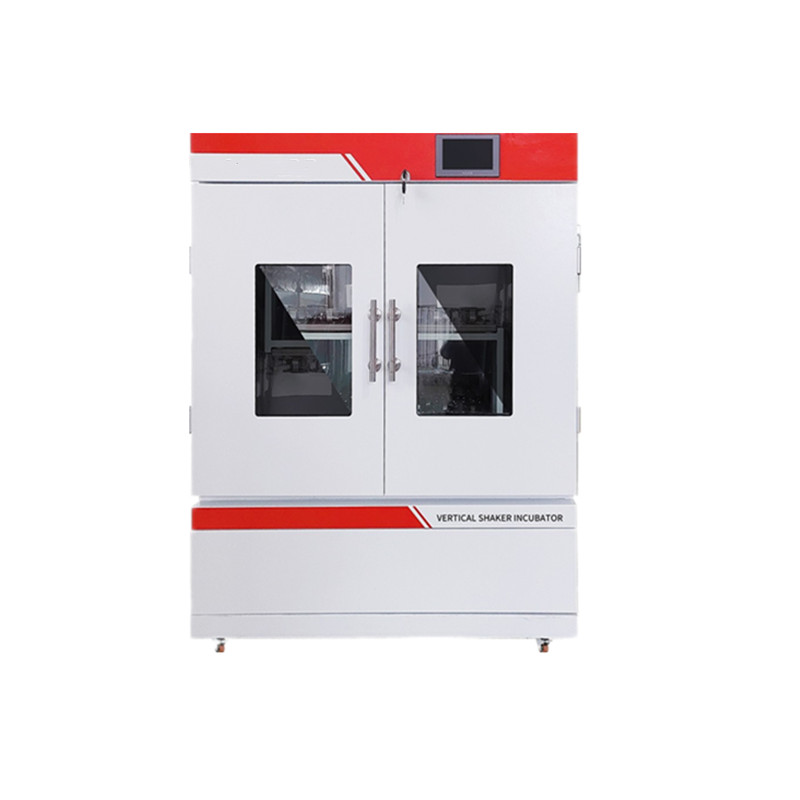

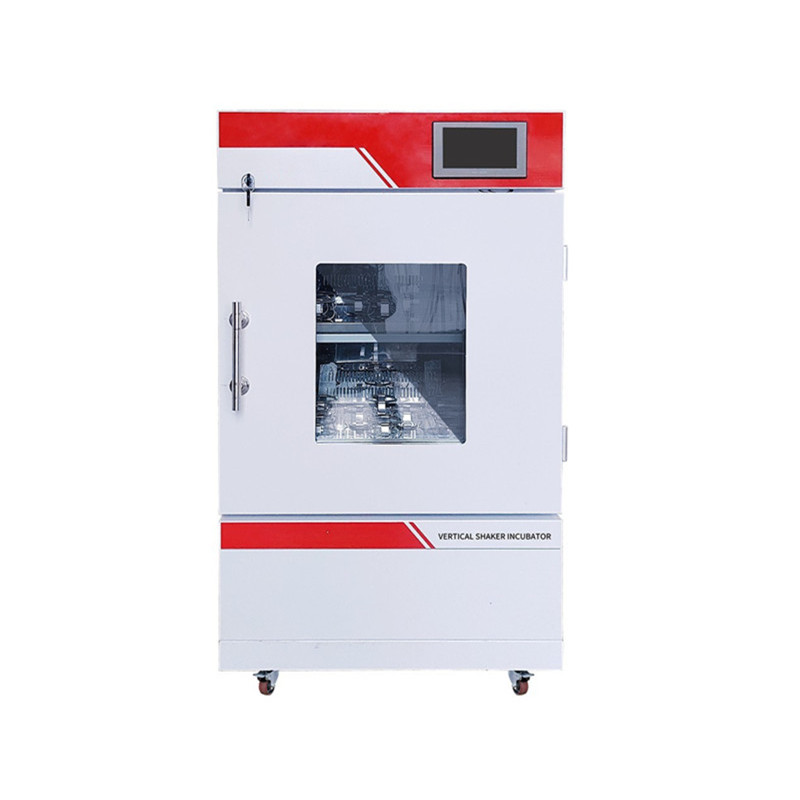

BXYC-LX series Vertical Shaker
  • Product Category: Products Shaker / Oscillator
  • product description:The BXYC-LX series Vertical Shaker is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research, all of which require high temperature and oscillation frequency.
  • Products Description


    The BXYC-LX series Vertical Shaker is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research, all of which require high temperature and oscillation frequency.


    Products Features


    1

    Vertical double-layer structure, small footprint and large bottle capacity

    2

    Intelligent sound and light alarm environment scanning microprocessor controller

    3

    PMMA II operating system, displaying various set and measured parameters

    4

    Encrypt and lock operating parameters to avoid human error

    5

    Set the timing for up to 999 hours, and the endpoint will automatically stop oscillation and sound and light alarms

    6

    DC brushles motor design, with wide speed regulation, constant torque, constant speed, no carbon brushes, and maintenance free, completely solves the problem of unstable speed during low-speed shaking

    7

    The movement adopts imported bearings, with long service life and low noise

    8

    7-inch touch screen, displaying real-time parameters

    9

    Multi segment programmable, capable of setting 30 segments and 999 cycles

    10

    With reservation function and multi-level permission operation

    11

    With event recording function, curve and data viewing function

    12

    USB storage function, with 1 million data records. Support for USB drive data export

    13

    High quality compressor, DC motor

    14

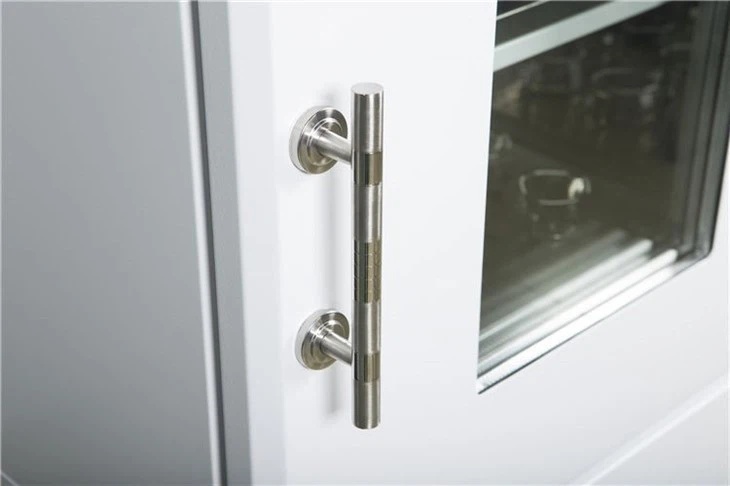

    Tempered glass doors with mechanical locks

    15

    Humidity control model with water tank


    Products Technical Parameters


    Model BXYC-LX3600/2600/1600 BXYC-LX3400/2400/1400 BXYC-3200/2200
    Volume [L] 600 400 200
    Temp. Range [°C] RT+5~60/4~60
    Temp. Resolution [°C] 0.1
    Temp. Fluctuation at 37°C [°C] ±0.3
    Temp. Uniformity at 37°C [°C] ±1
    Rotation Rate [rpm] 30~300
    Rotation Accuracy [rpm] ±1
    Vibration Amplitude [mm]  Ø26/Ø35 Ø26
    Timer Range [h] 0~999

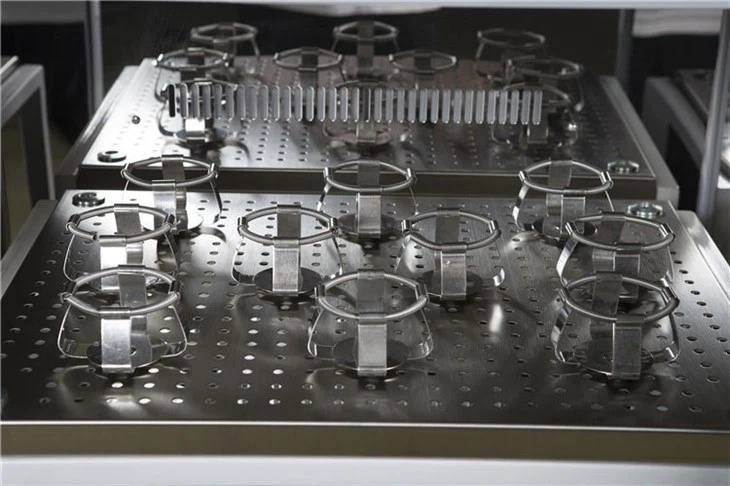

    Number of Trays [pc] 2
    Power Supply [V, Hz] 220, 50/60
    Power [W] 1600/1800/2800 1400/1600/2600 1000/1300
    Internal Dimensions W×D×H [mm] 1100×665×830 860×580×800 630×490×640
    Housing Dimensions W×D×H [mm] 1430×825×1590 1200×740×1500 730×685×1300
    Tray Size W×D [mm] 970×560 755×478 530×410
