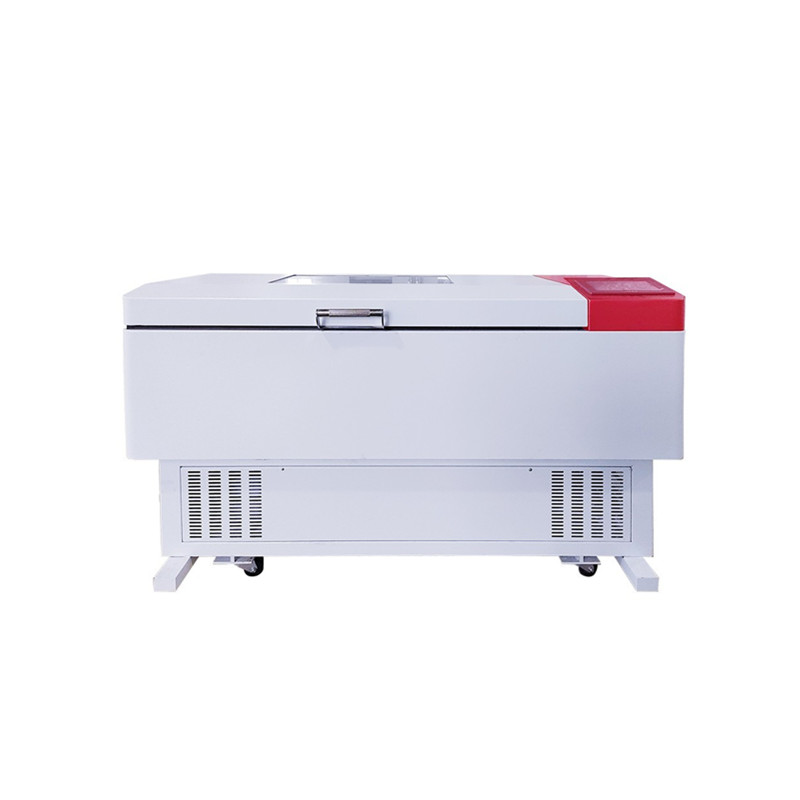

BXYC-WX-C series Horizontal Shaker
  • Product Category: Products Shaker / Oscillator
  • product description:The BXYC-WX-C series Horizontal Shaker is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research, all of which require high temperature and oscillation frequency.
  • Products Description


    The BXYC-WX-C series Horizontal Shaker is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research, all of which require high temperature and oscillation frequency.


    Products Features


    1

    The BRIGHT I intelligent operating system can automatically compensate for control parameter values according to environmental changes

    2

    7-inch large touchscreen full color operation screen, supporting temperature, humidity, time, speed, cycle, number of segments, alarm information, instrument operation status display, and displaying Gregorian time and real-time parameters

    3

    Screen backlight protection, which can set screen lock, screensaver, unlock password, etc. to prevent misoperation and arbitrary program changes

    4

    Intelligent frost free operation throughout the entire process, automatically balancing the required cooling capacity, greatly reducing energy consumption

    5

    Gregorian calendar appointment function: Set the running time of the Gregorian calendar appointment, and automatically run according to the preset program when the appointment time is reached

    6

    Data storage system: Large capacity USB storage system, supporting more than 1 million data records, supporting USB data export, facilitating data management

    7

    CO2 control system: High precision carbon dioxide infrared concentration sensor is selected, with high reaction accuracy for carbon dioxide concentration detection. It is equipped with a carbon dioxide pressure reducing valve and can be used when connected to a carbon dioxide gas source

    8

    Internal standard lighting, combined with high transparency tempered glass, facilitates users to check the sample cultivation status without opening the door

    9

    Adopting high-quality compressor units, reducing noise levels by more than 50%, supporting long-term operation

    10

    Adopting high-quality DC brushless motor with motor slow start function, effectively protecting the motor while avoiding liquid splashing out in the shaking bottle during sudden acceleration and rotation

    11

    Support direct viewing of alarm information, with functions such as instant stop when opening the door, power outage recovery, fault self-diagnosis, door delay alarm, and temperature anomaly alarm

    12

    Optional with other scale shaking bottle fixtures, universal spring fixtures, adhesive plates, stainless steel test tube racks, and plastic test tube racks


    Products Technical Parameters


    Model BXYC-WX2350C BXYC-WX1350C BXYC-WX2280C BXYC-WX1280C BXYC-WX2200C
    Temp. Range [°C] 4~60
    Temp. Resolution [°C] 0.1
    Temp. Fluctuation at 37°C [°C] ±0.3
    Temp. Uniformity at 37°C [°C] ±1
    CO2 Range [%] 0~20
    CO2 Accuracy [%] 0.1
    Rotation Rate [rpm] 30~300
    Rotation Accuracy [rpm] ±1
    Vibration Amplitude [mm] Ø26 Ф35 Ø26 Ф35 Ø26
    Timer Range [h] 0~999
    Power Supply [V, Hz] 220, 50/60
    Power [W] 1800 2800 1600 2400 1500
    Internal Dimensions W×D×H [mm] 1035×675×470 1010×590×470 1010×590×310
    Housing Dimensions W×D×H [mm] 1380×800×1010 1350×700×1000 1260×730×850
    Tray Size W×D [mm] 970×605 950×530
    Standard Configuration [ml×pc] 2000×8 2000×6 500×20
