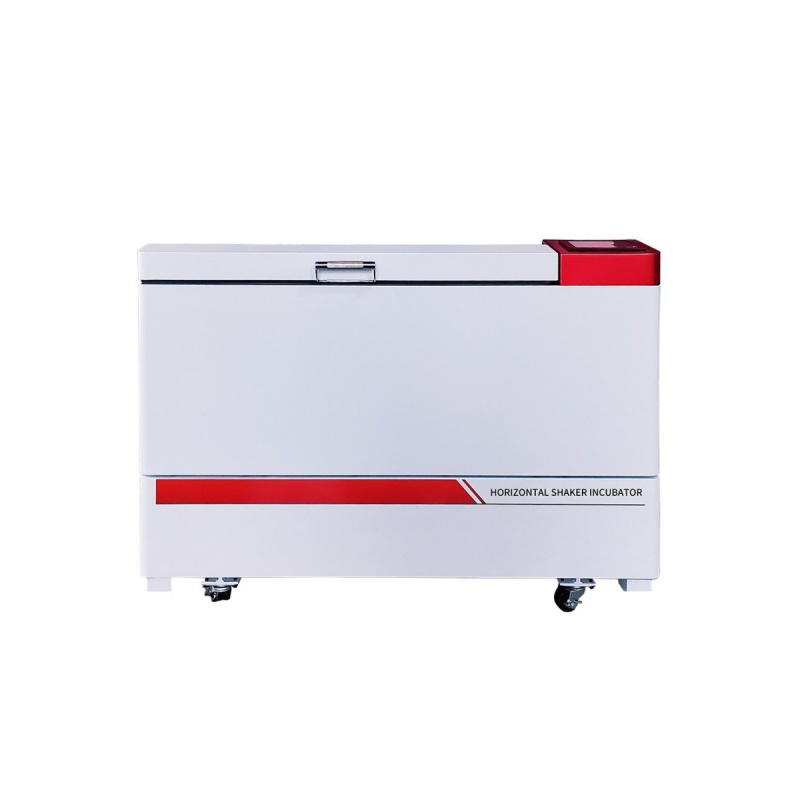

BXYC-WX-L series Horizontal Shaker
  • Product Category: Products Shaker / Oscillator
  • product description:The BXYC-WX-L series Horizontal Shaker is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research, all of which require high temperature and oscillation frequency.
  • Products Description


    The BXYC-WX-L series Horizontal Shaker is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research, all of which require high temperature and oscillation frequency.


    Products Features


    1

    Adopting the BRIGHT I intelligent operating system, the control parameter values can be automatically compensated according to environmental changes

    2

    7-inch touchscreen full color operation screen, supporting temperature, humidity, time, speed, cycle, number of segments, alarm information, instrument operation status display, and displaying Gregorian time and real-time parameters

    3

    Ergonomic large screen, with a large touch screen located on a high inclined plane to prevent glare from vertically angled screens

    4

    Multi stage operating temperature programming settings, up to 30 999 cycles of custom programs can be set

    5

    Can set lock screen, screensaver, unlock password, etc. to prevent misoperation and arbitrary program changes

    6

    Intelligent frost free operation throughout the entire process, automatically balancing the required cooling capacity, equipped with compressor delay start, effectively extending the service life of the compressor

    7

    The permission management system allows administrators to customize and assign all device operation permissions (with 14 different operation functions) to 42 operators, and each operator's operation will generate a unique traceable imprint in the event record

    8

    The event management system allows the control system to record equipment events on its own with an exact time, making it easy for customers to clearly grasp the operating status of the equipment

    9

    The lighting control system adopts a full spectrum high intensity plant LED light source, composed of far red, red, blue, and white four color lamp beads, with stepless adjustable lighting intensity

    10

    Internal standard lighting, combined with high transparency tempered glass, facilitates users to check the sample cultivation status without opening the door

    11

    Standard mechanical lock to prevent unauthorized opening of doors

    12

    Standard large capacity humidification water tank to ensure internal humidity environment

    13

    The front adopts an integrated high transparency tempered glass, with a bright, clean, and easy to clean integrated design. Without opening it, you can directly observe the internal cultivation situation


    Products Technical Parameters


    Model
    BXYC-WX2350L BXYC-WX1350L BXYC-WX2280L BXYC-WX1280L BXYC-WX2200L
    Temp. Range [°C] 4~60
    Temp. Resolution [°C] 0.1
    Temp. Fluctuation at 37°C [°C] ±0.3
    Temp. Uniformity at 37°C [°C] ±1
    Illuminance [Lux] 0~20000
    Rotation Rate [rpm] 30~300
    Rotation Accuracy [rpm] ±1
    Vibration Amplitude [mm] Ø26 Ф35 Ø26 Ф35 Ø26
    Timer Range [min/h] 0~999
    Power Supply [V, Hz] 220, 50/60
    Power [W] 1800 2800 1600 2400 1500

    Internal Dimensions

    W×D×H [mm]

    1035×675×470 1010×590×470 1010×590×310

    Housing Dimensions

    W×D×H [mm]

    1380×800×1010 1350×700×1000 1260×730×850
    Tray Size W×D [mm] 970×605 950×530
    Standard Configuration [ml×pc] 2000×8 2000×6 500×20
